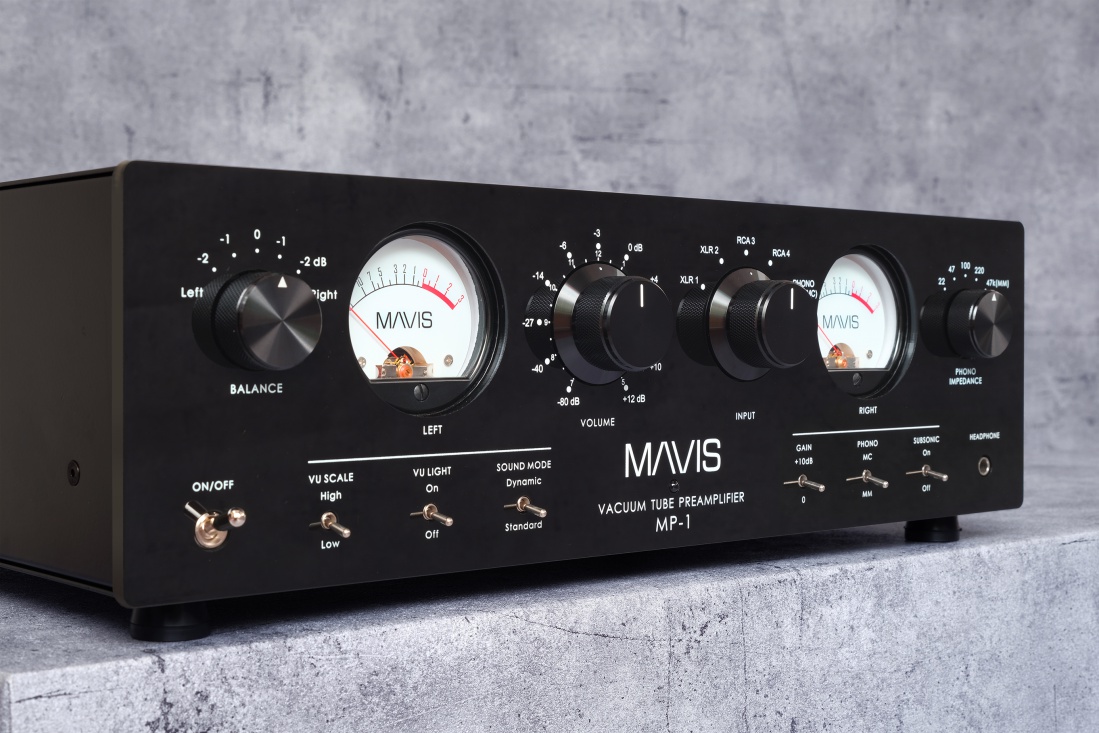

MP-1 VACUUM TUBE PREAMPLIFIER

SPECIFICATIONS
Analog Inputs : 5 XLR1 ; XLR2 ; RCA3 ; RCA4
MM / MC RIAA Phono
Analog Outputs (Rear) : 2 1 Stereo Pair of RCA
1 Stereo Pair of XLR
Headphone (front) : 1 1/4″ (6.3mm) stereo
32 – 1.200 Ohms Headphone
Line Preamp
Tubes 1 x 12AU7    2 x EL84 (6BQ5)
Coupling Single Ended Transformer
Gain Max +22dB
Frequency response 10Hz – 32kHz (+/-1dB)
HUM Noise < 0.1 mV
VU Meter VU Light ON / OFF
VU Scale Low / High
Balance (Left / Right) (RIGHT)  -2dB , – 1 , 0 , -1 , -2dB (LEFT)
Sound Mode Standard / Dynamic
Gain 0 / +10dB
MM/MC Phono RIAA MM : +40dB  / 47k
MC  : +60dB
MM 47kOhm
MC Load impedance : 22 , 47, 100, 220 ohm
SUBSONIC Filter ON / OFF
Power Requirements 230V / 115V (50-60Hz)
Power Consumption 30W
Dimensions (W x D x H) 45 x 37 x 14 (cm)
Weight 15kgs
Remote control Included
Tube Class A Zero feedback
