Master 25

SPECIFICATIONS
Description 4-way, Floorstanding Loudspeakers
Transducers – 1 x 15 inch Paper Cone woofer.
– Front 1 x 1.4 inch Titanium diaphragm high-frequency compression driver mated to a 90° x 90° Radial horn
– 1 x 8 inch Paper Cone Midrange
– Rear 1 x 1.4 inch Titanium diaphragm high-frequency compression driver mated to a 90° x 90° Radial horn
Sensitivity (2.83V @ 1m) 98dB
Impedance 8 Ohms (nominal)
Frequency response 29Hz – 20kHz
Crossover Frequencies 300Hz , 2.2 kHz , 2.5kHz
Power handling 200W RMS
Amplifier suggestion > 15W / channel
Dimensions (W x D x H/block) 50cm x 40cm x 136cm
Weight 142 kgs
Gross weight (kg/2 blocks) 156 kgs​
INTRODUCTION

MASTER 25 – AN EXCELLENT SOUND QUALITY and AN UNLIMITED SOUND STAGE

The impressive sound of the Master 25 is our successful research and testing result in both High End and professional audio fields. This model exploits the optimal points of each audio field to recreate the atmosphere of the live performance and concert as well as to transfer the most correct and emotional recording from the studio to the listeners.

The Master 25 has a very balanced, detailed, sophisticated sound and outstanding dynamics. As soon as the music plays, you will immediately sink into the wonderful melodies and a space of a concert and even feel the singer or the orchestra are just in front of you and you are seated in the best position in a theater.

In the process of testing and developing models of the Master Series with various methods such as technical measurement in the lab, real testing in different forms of demonstration and setup, from home music listening to live music performance at the concerts from small to large scale, etc. Through the process of testing, there have been many technological optimizations and innovations that have been applied to the sound reproduction to reach a new level of high fidelity and dynamic, achieve a wide dynamic range and very accurate sound reproduction. Accordingly, the Master 25 has also been optimized in engineering solutions, refined in structure of the speaker enclosure and crossover to meet the new sound standards that we define for the Master Series.

The Master 25 is a four-way floor-standing loudspeaker combining the positive designs of the horn, open-baffle and closed enclosure speaker with a vent in the bottom. This speaker utilizes high sensitivity drivers including a 15-inch paper cone woofer and two 1.4-inch titanium diaphragm high-frequency compression drivers mated to 90° x 90° radial horns and a 8-inch paper cone midrange. The structure of the speaker cabinet is specially designed to optimize the low frequency while the midrange and high range are enhanced with a clear and very detailed sound.

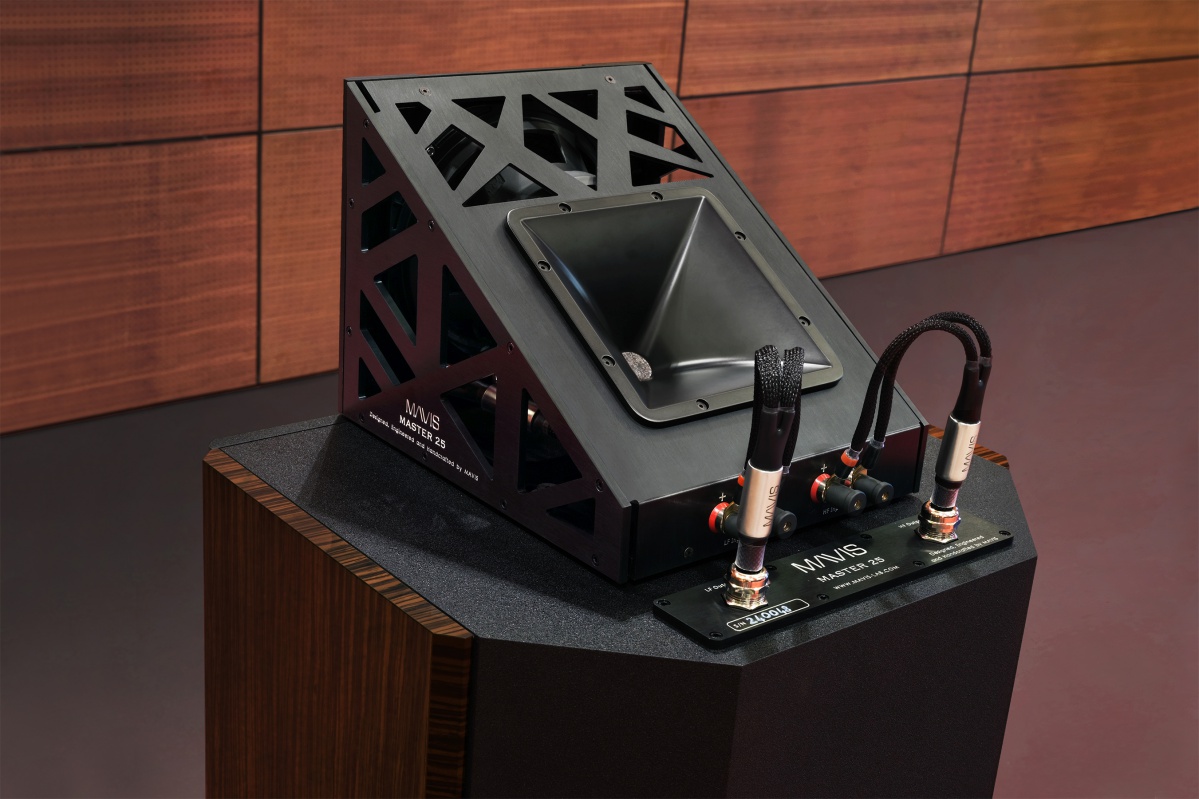

A unique design of the block of an open baffle midrange speaker combined with the horn tweeter towards the rear space of the speaker has made an incredible extension of the soundstage. The live recordings are exceptionally reproduced to achieve a true “like live” sound. This speaker’s sensitivity reaches 98dB and depending on the power of the amplifier, this speaker can perform in different room sizes from 30m2 to 60m2 listening rooms.

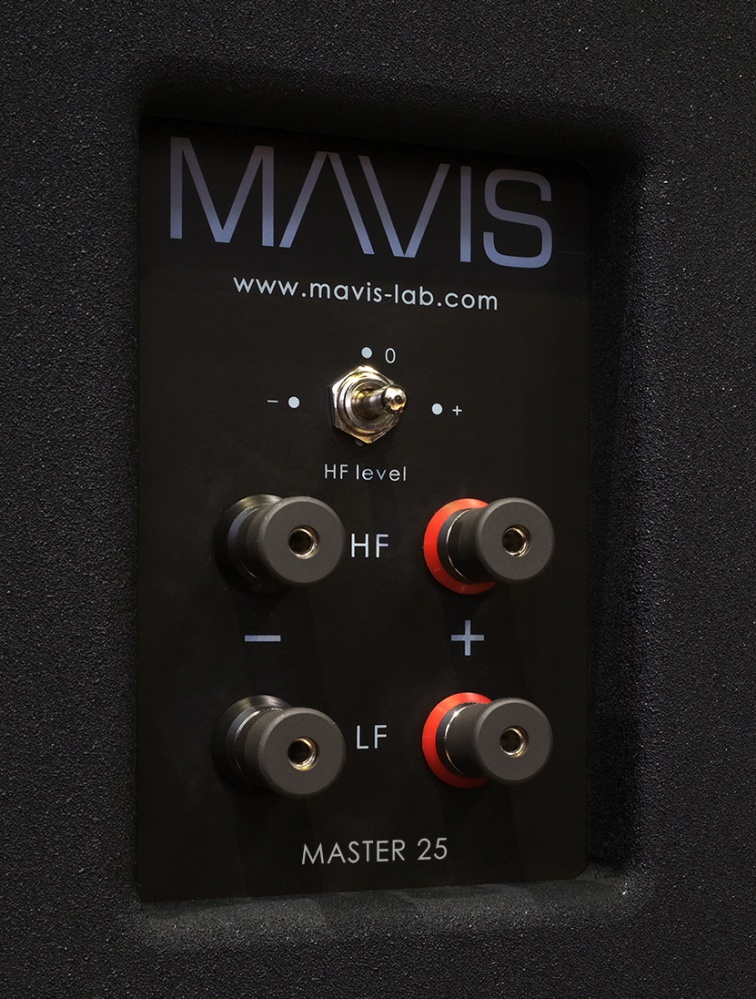

In addition to the outstanding characteristics of the sound, the Master 25 is designed with bi-wire terminals and a sound mode switch to flexibly adjust the sound to meet the user’s preference. The sound thus rises to a new level of musical expression and emotionally conveys music to the listener. These features truly open a plentiful music experience for the listeners.





The enclosure is an outstandingly steady structure and finished high quality in sandblasted black. This version is one of the most outstanding speaker structures with a very impressive aesthetic appearance, strong heavy speaker enclosure with double high quality MDF panel layers that results in very clear and smooth midrange as well as natural extended high frequencies. Each side of the speaker cabinet is decorated by a thick wooden plate finished in polished walnut or ebony veneer, which also contributes to the enclosure’s excellent anti-vibrance. The Master 25 truly looks like a manly gentleman with a gentle sophisticated appearance.

The Master 25 is developed to serve the various tastes of listeners as well as a diversity of use. Aside from being a High End speaker in audiophiles’ systems, this speaker can be extremely excellent to be used as a front channel in home theater systems or a monitor loudspeaker in a recording studio.

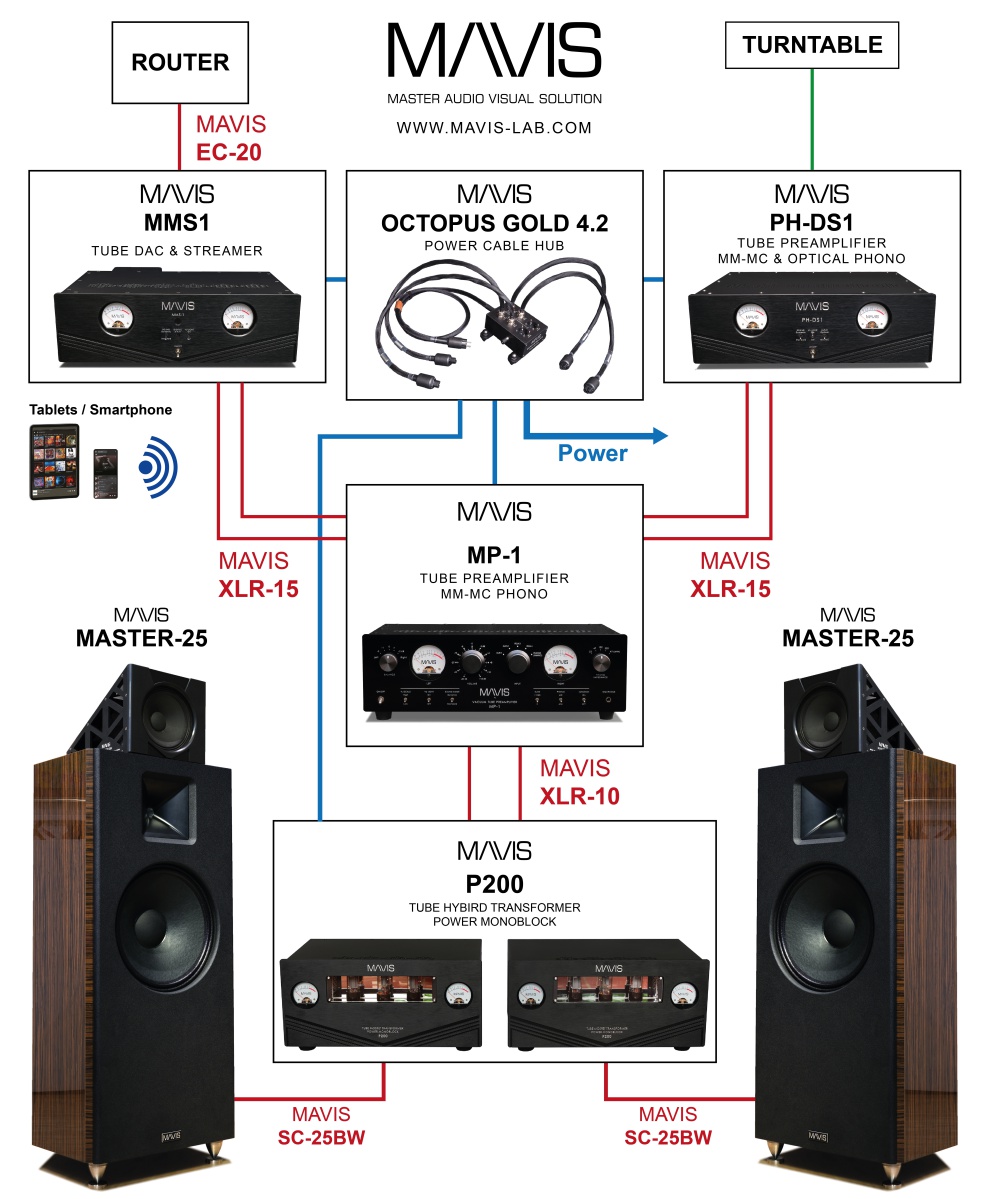

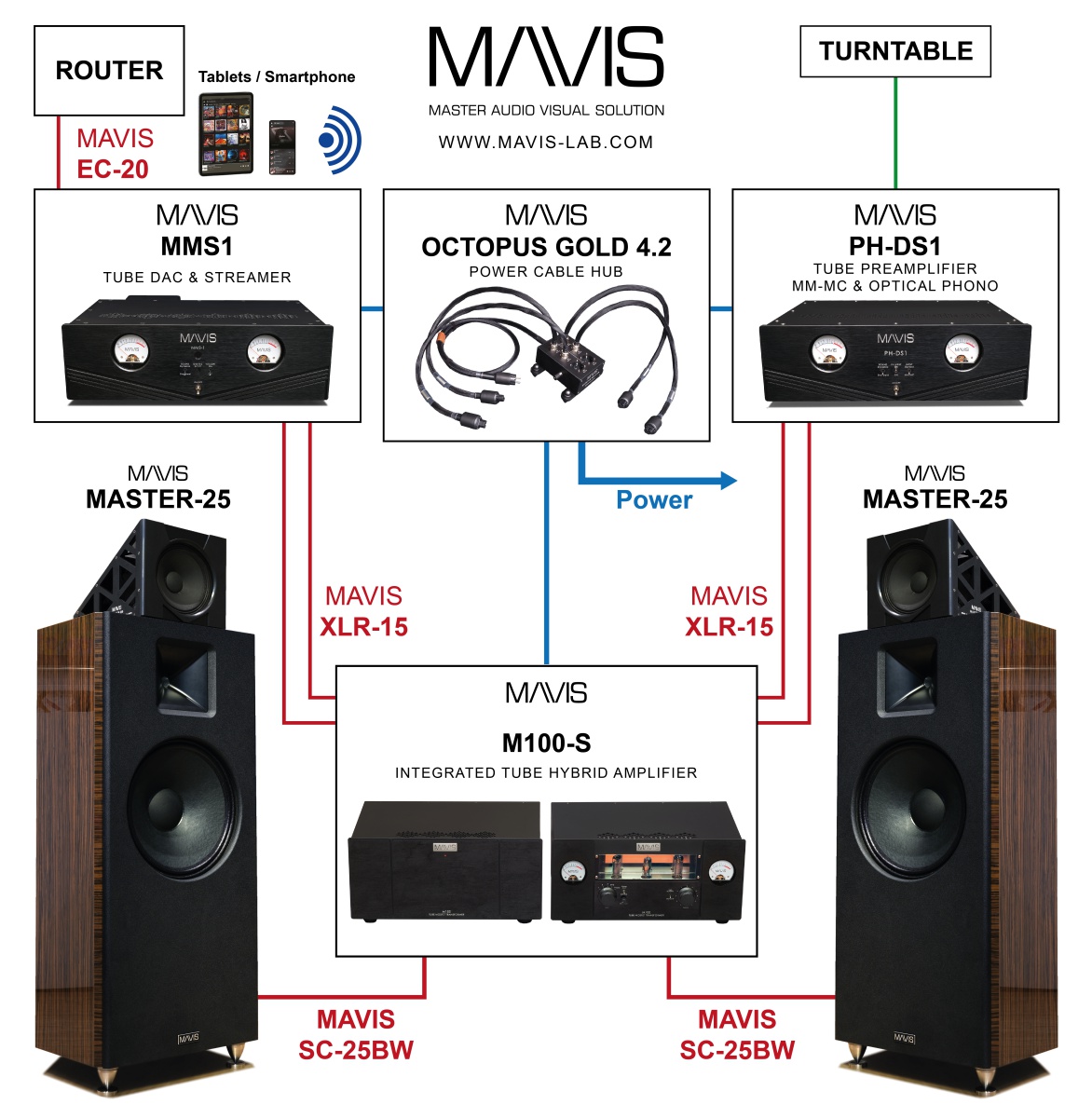

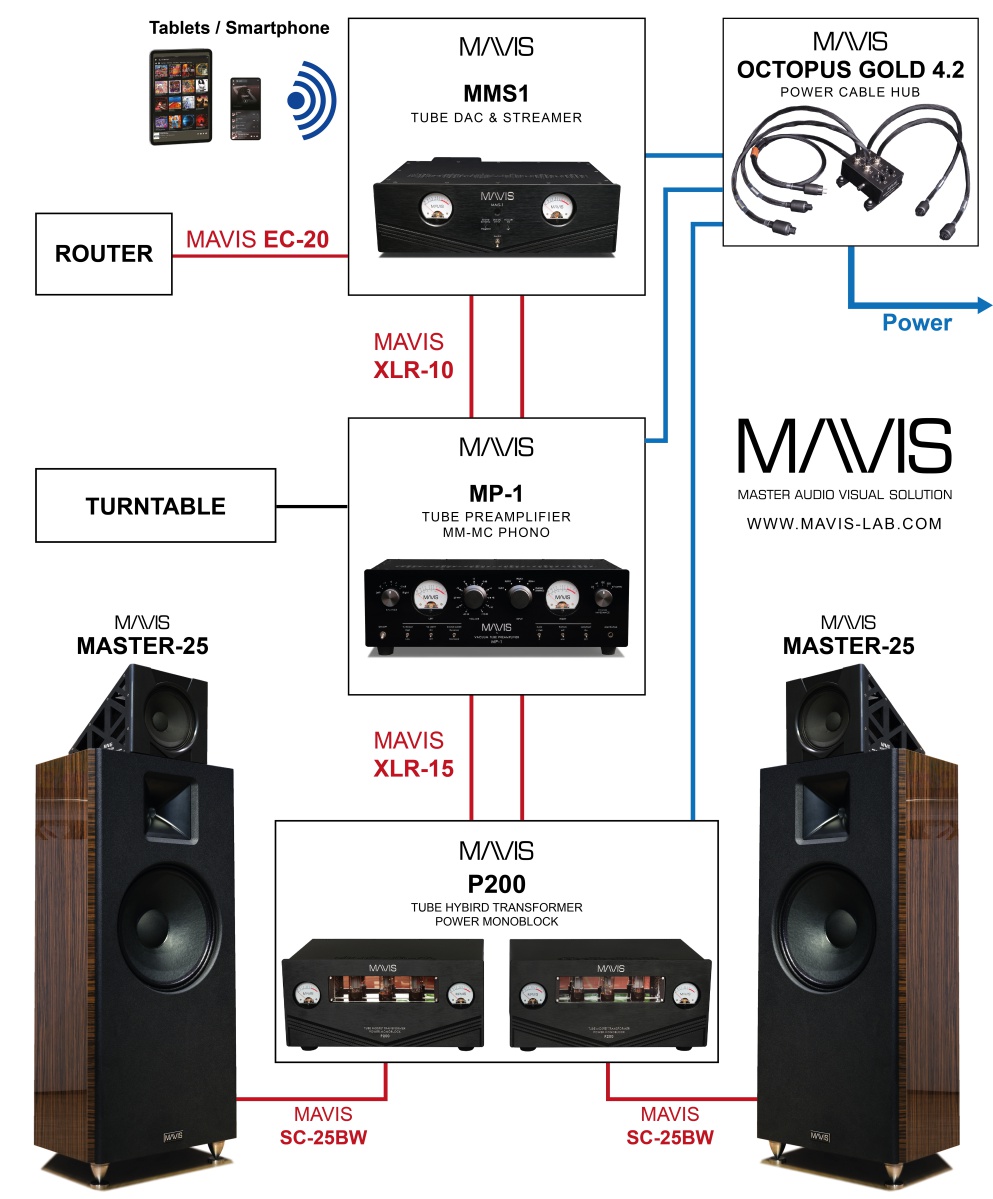

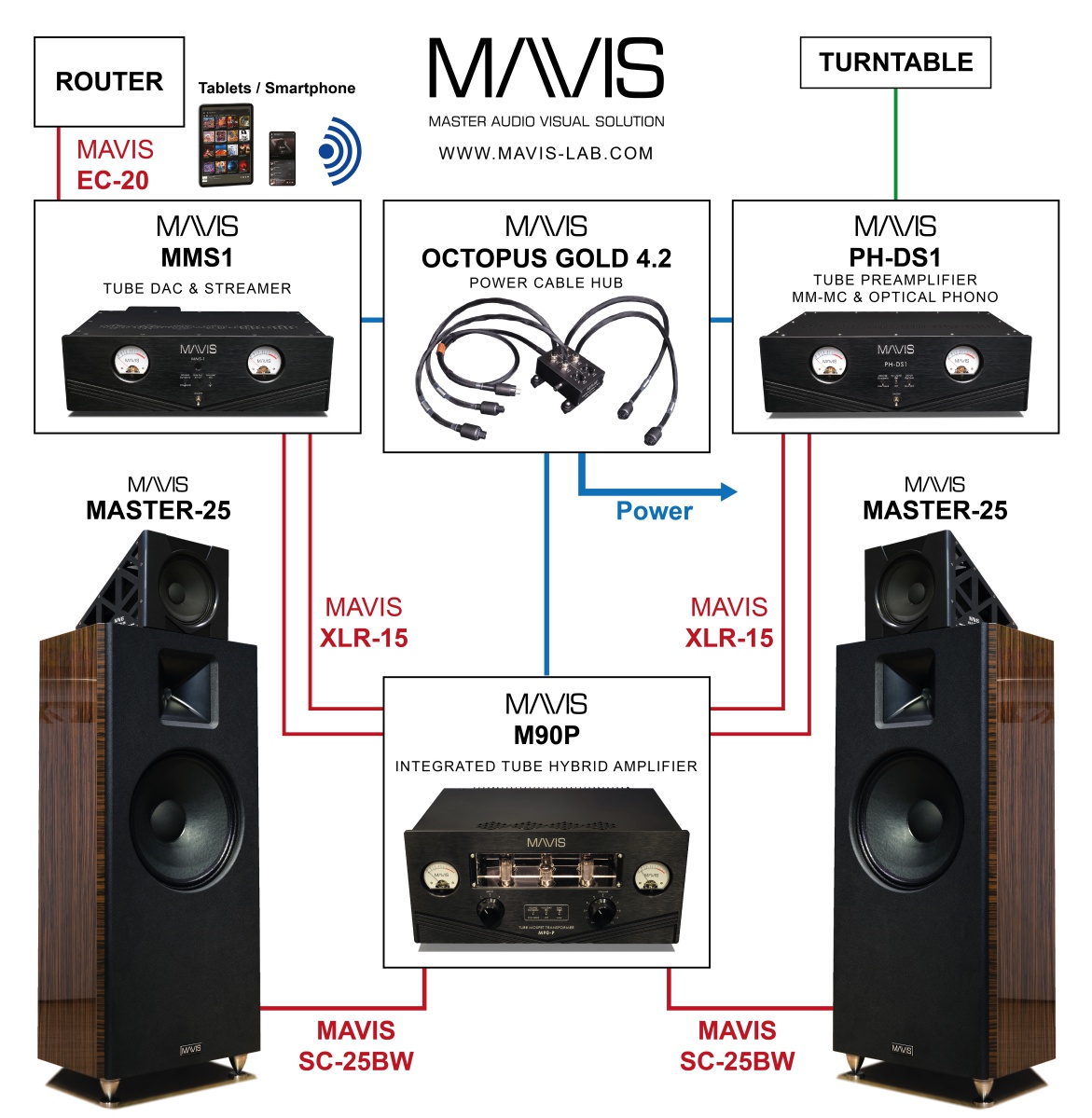

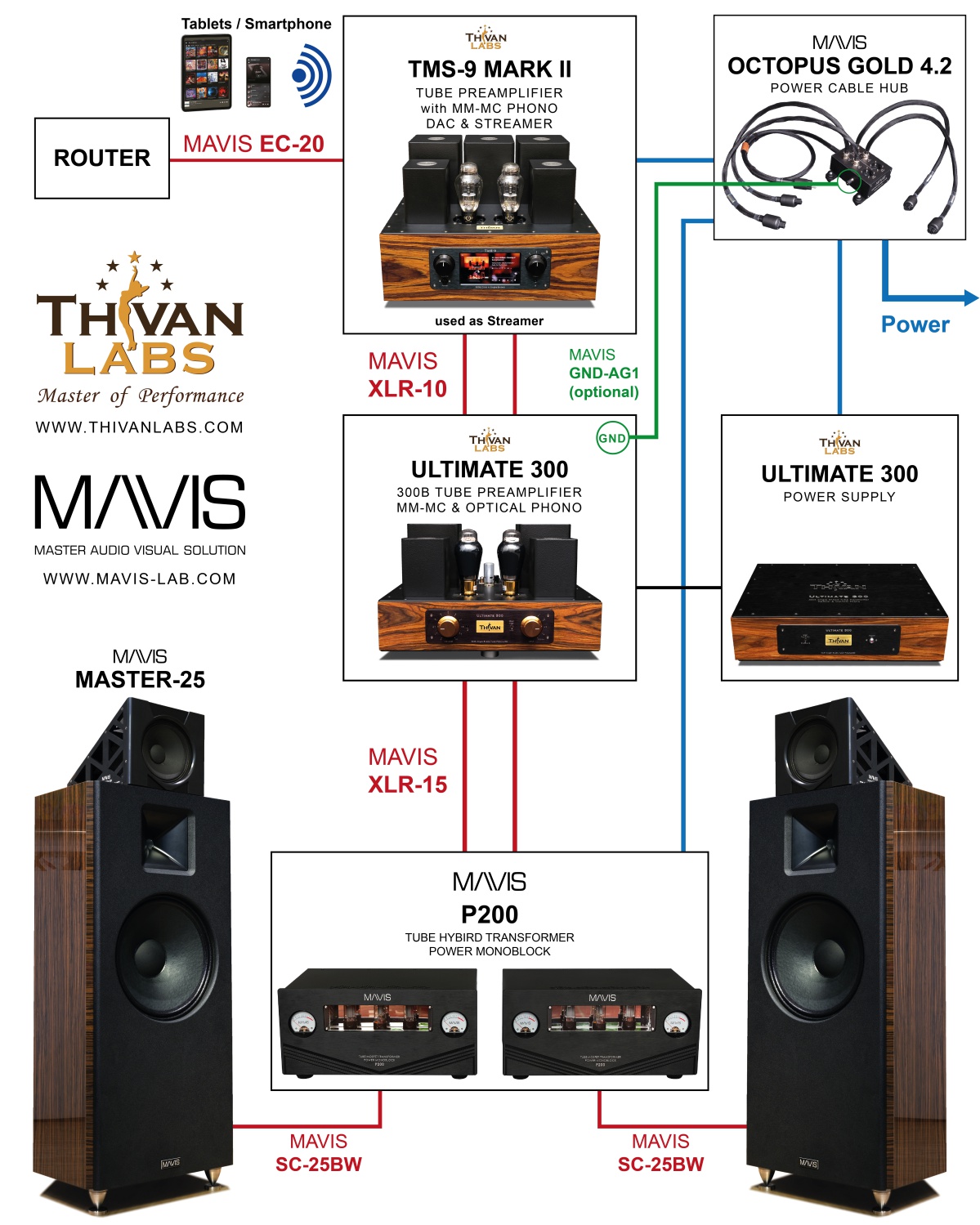

AUDIO SYSTEM SUGGESTION





IMAGES
