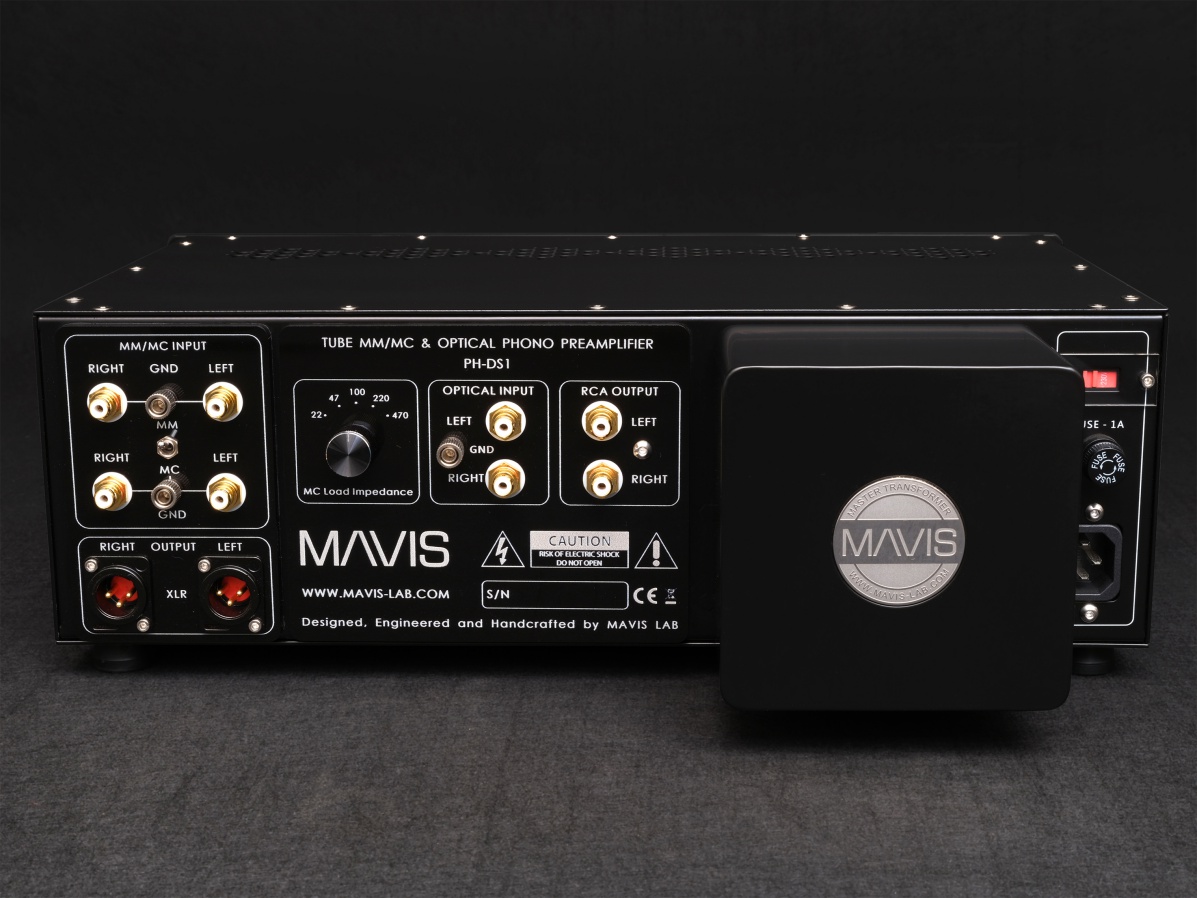

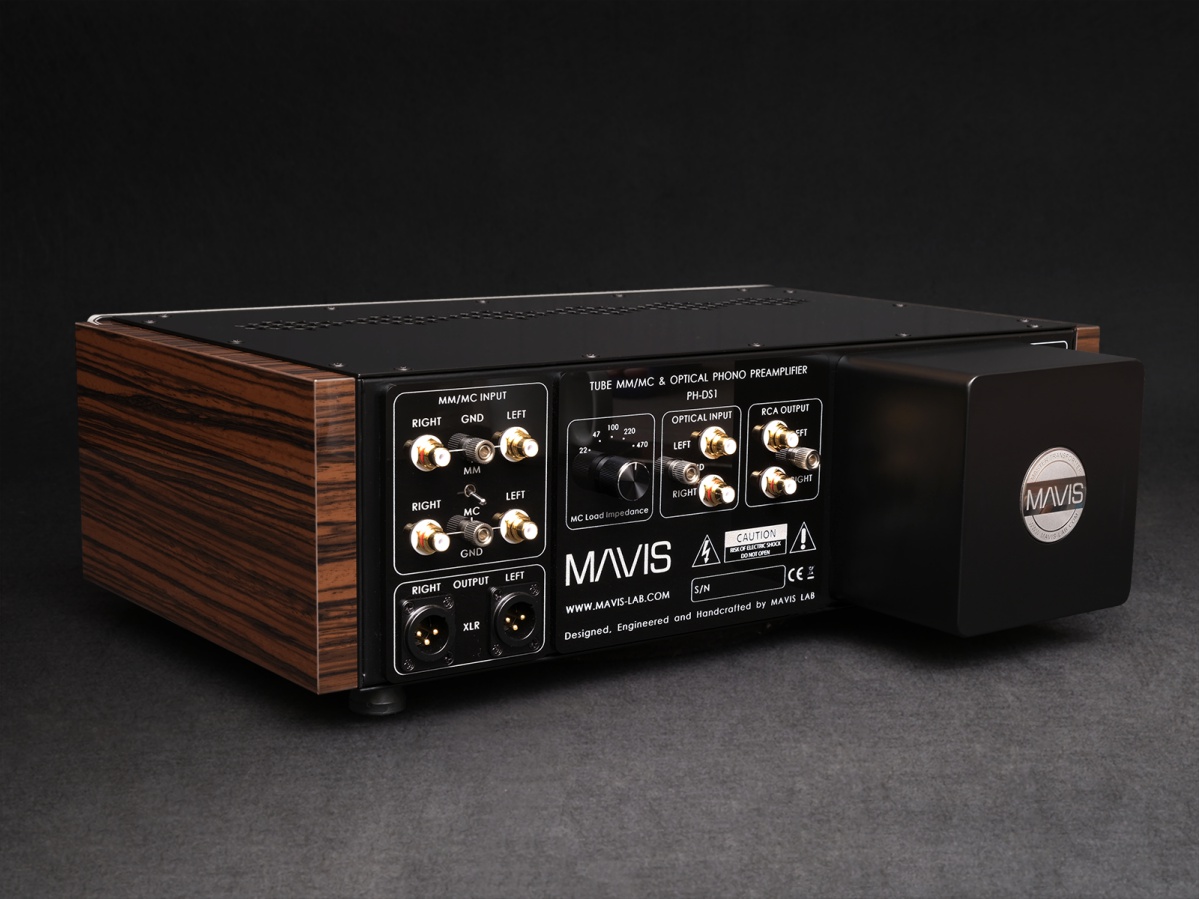

| Inputs |
MM Phono (RCA) |
| MC Phono (RCA) |
| Optical Phono (DS Optical Cartridge) |
| Outputs |
1 Stereo Pair of RCA |
| 1 Stereo Pair of True Balance XLR |
| Vacuum tubes |
|
| – Output |
2 x EL84 (6BQ5) |
| Coupling |
Single Ended Transformer |
| Frequency response |
18Hz – 30kHz (+/- 0dB) |
|
10Hz – 90kHz (+/- 3dB) |
| – MM / MC / Optical Phono |
2 x 12AX7 ; 1 x 12AU7 |
| Gain |
|
| – MM |
+ 48dB |
| – MC (Stepup transformer) |
+ 68dB |
| – Optical DS |
+ 28dB |
| Phono Input Impedance |
|
| – MM |
47k |
| – MC |
22 – 47 – 100 – 220 – 470 Ohms |
| Funtions |
|
| VU Meter |
VU Light ON / OFF switch |
| Sound Mode |
Standard / Dynamic switch |
| Phono Input |
MM/MC – Optical |
| Power Requirements |
230V / 115V (50-60Hz) |
| Power Consumption |
30W |
| Dimensions (W x D x H) |
45 x 37 x 14 (cm) |
| Weight |
15kgs |
| Remote control |
No |
| Tube Class A Zero feedback |
|
