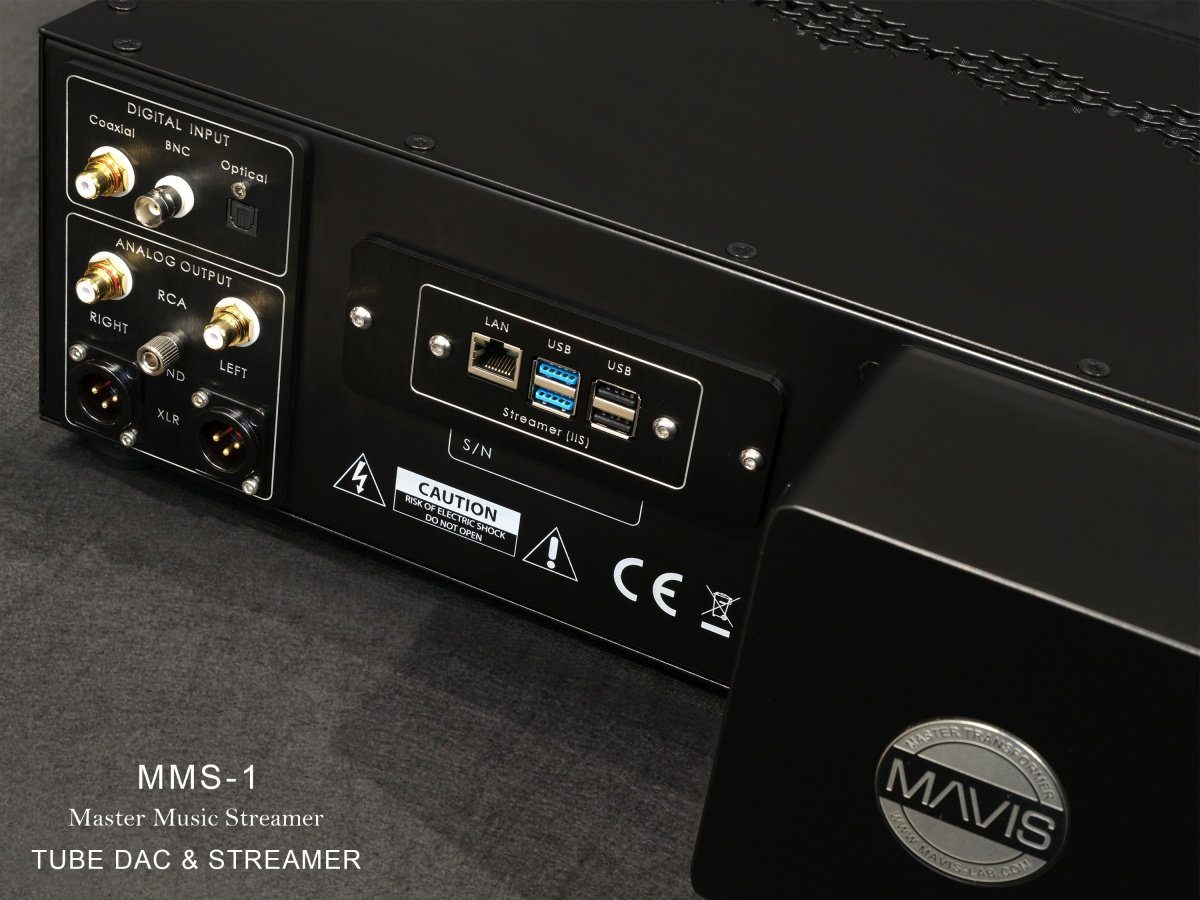

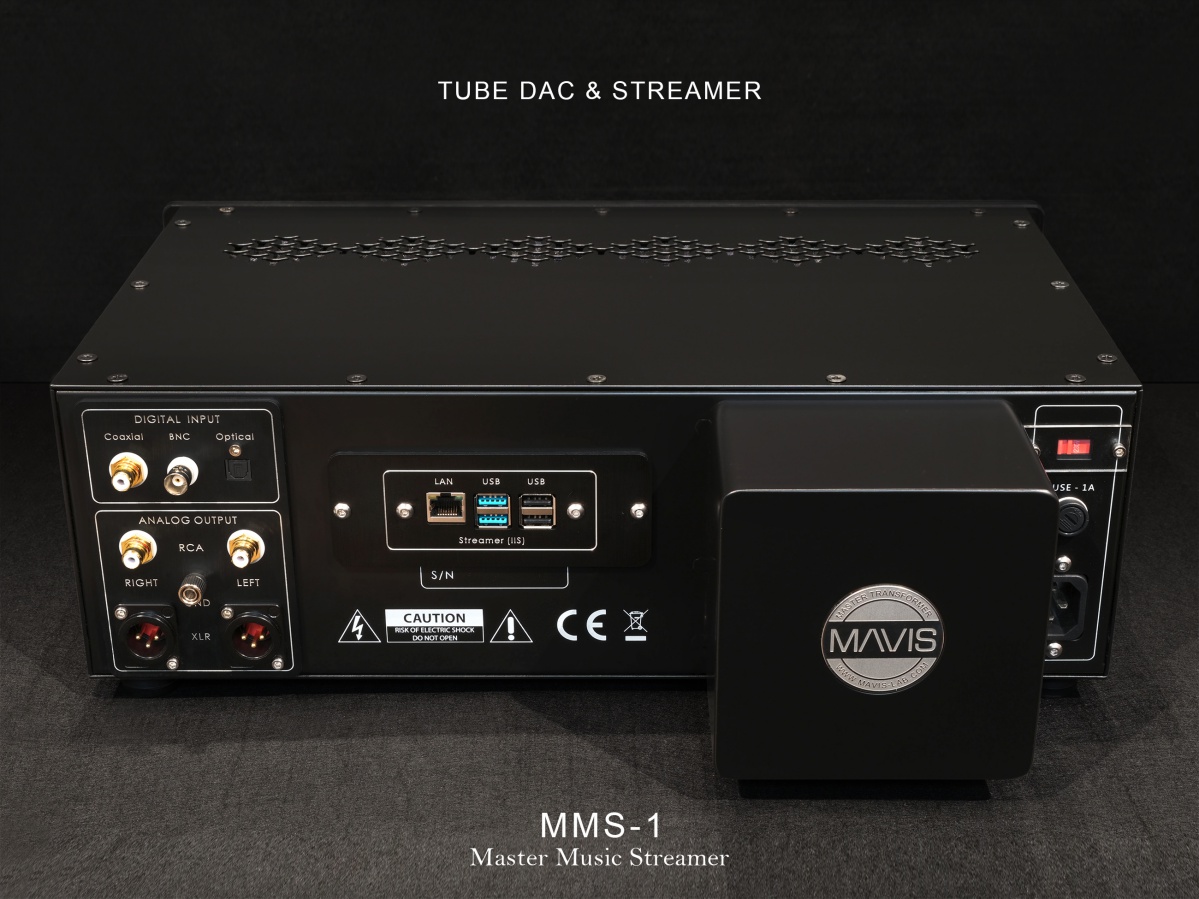

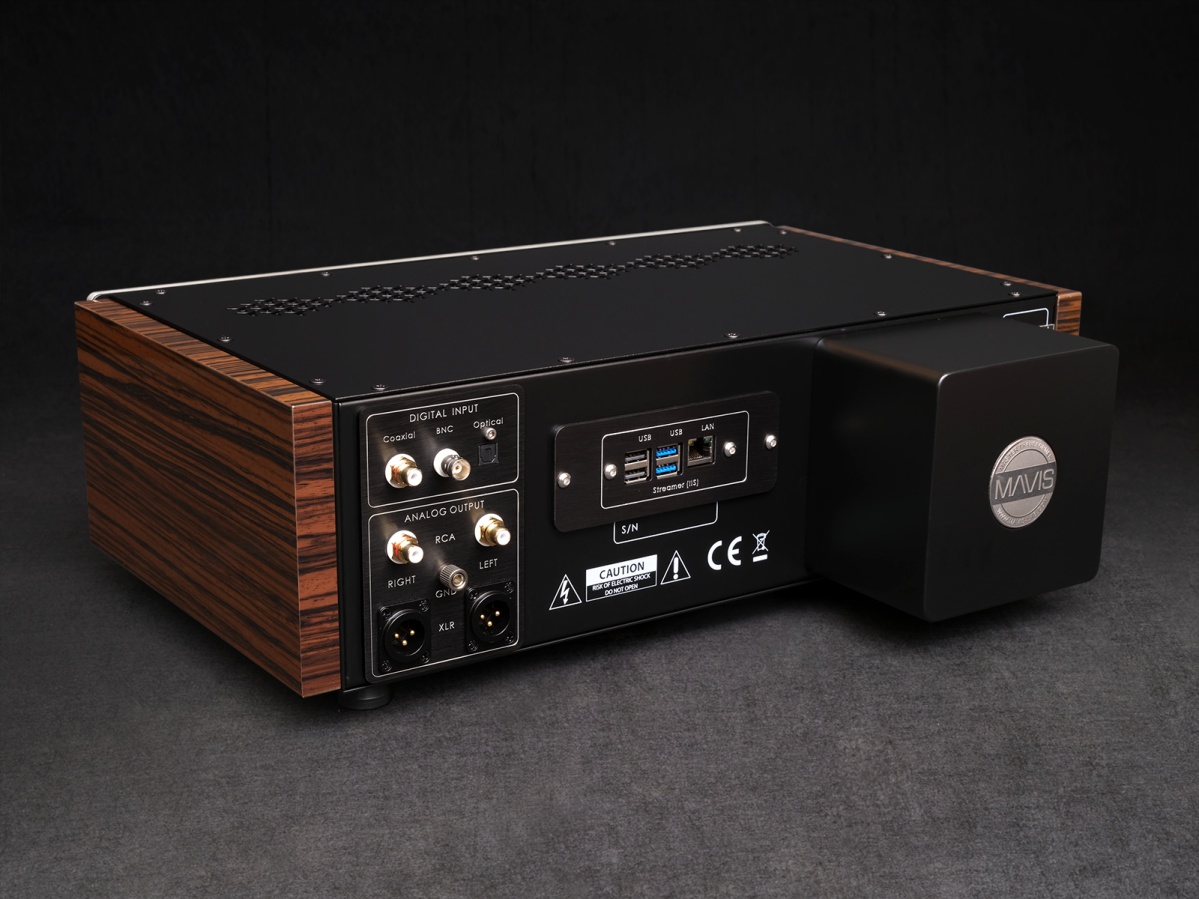

| Digital Inputs : 4 | DAC : Optical / Coaxial / BNC / Steamer (IIS) |
| Display | COAX / OPT / BNC / IIS (Streamer) |
| Streamer | Raspberry Pi 4 |
| USB | 2 x USB 2.0 (Total max 100mA) |
| 2 x USB 3.0 (USB, HDD, SSD . . . Total max 500mA) | |
| LAN | Gigabit |
| Decoder | Audio Decoder by 24bit R-2R Module |
| Analog Outputs : 2 | 1 Stereo Pair of RCA |
| 1 Stereo Pair of XLR | |
| Tube Output | |
| Tubes | 2 x EL84 (6BQ5) |
| Coupling | Single Ended Transformer |
| Frequency response | 18Hz – 30kHz (+/- 0dB) |
| 10Hz – 90kHz (+/- 3dB) | |
| Funtions | |

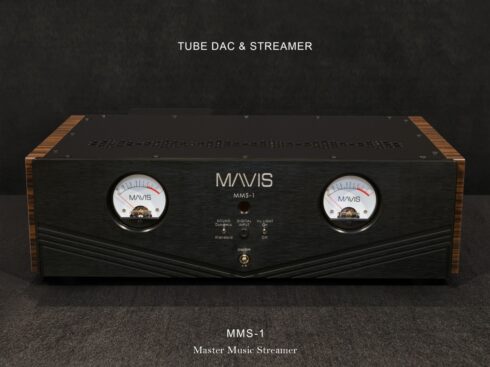

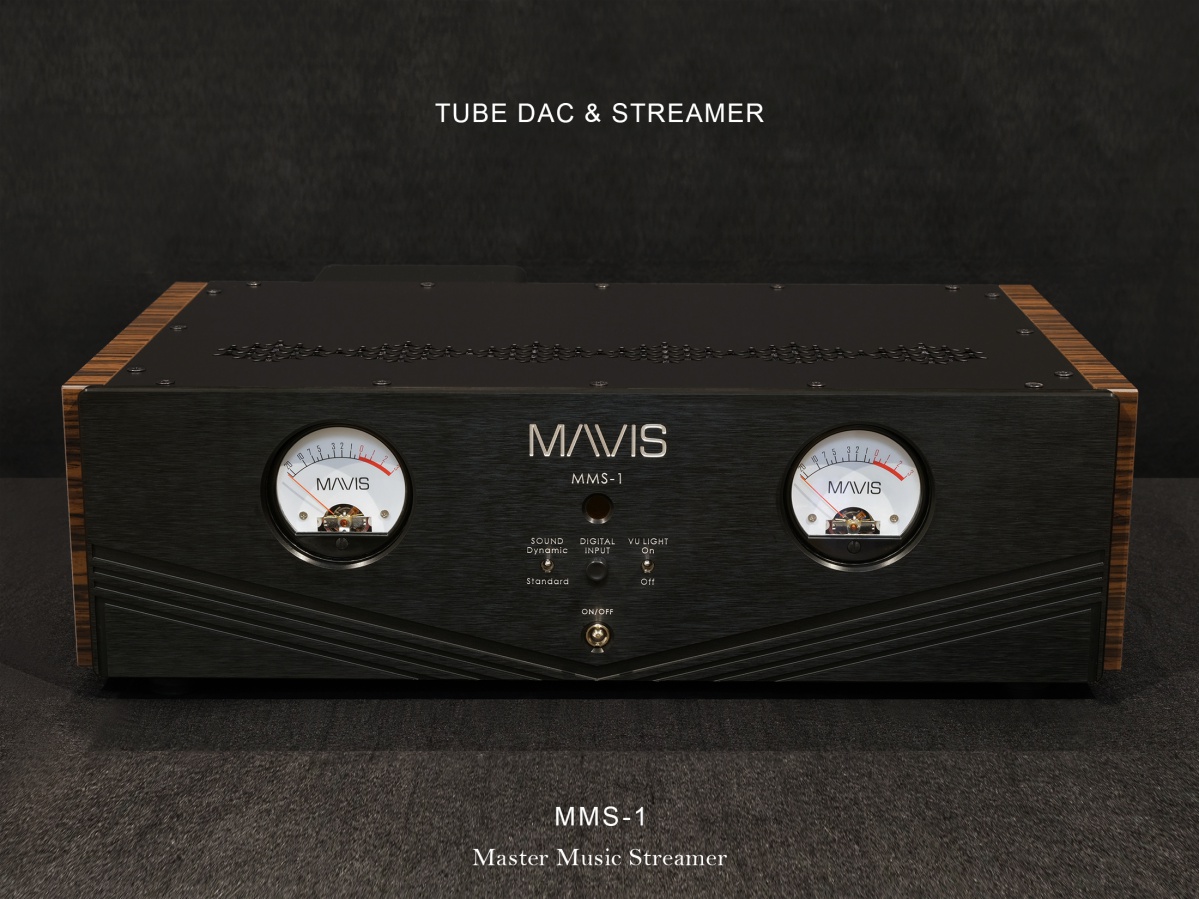

| VU Meter | VU Light ON / OFF switch |
| Sound Mode | Standard / Dynamic switch |
| DAC Input | Digital Input switch |
| Power Requirements | 230V / 115V (50-60Hz) |
| Power Consumption | 30W |
| Remote control | Included |
| Dimensions (W x D x H) | 45 x 37 x 14 (cm) |
| Weight | 15kgs |

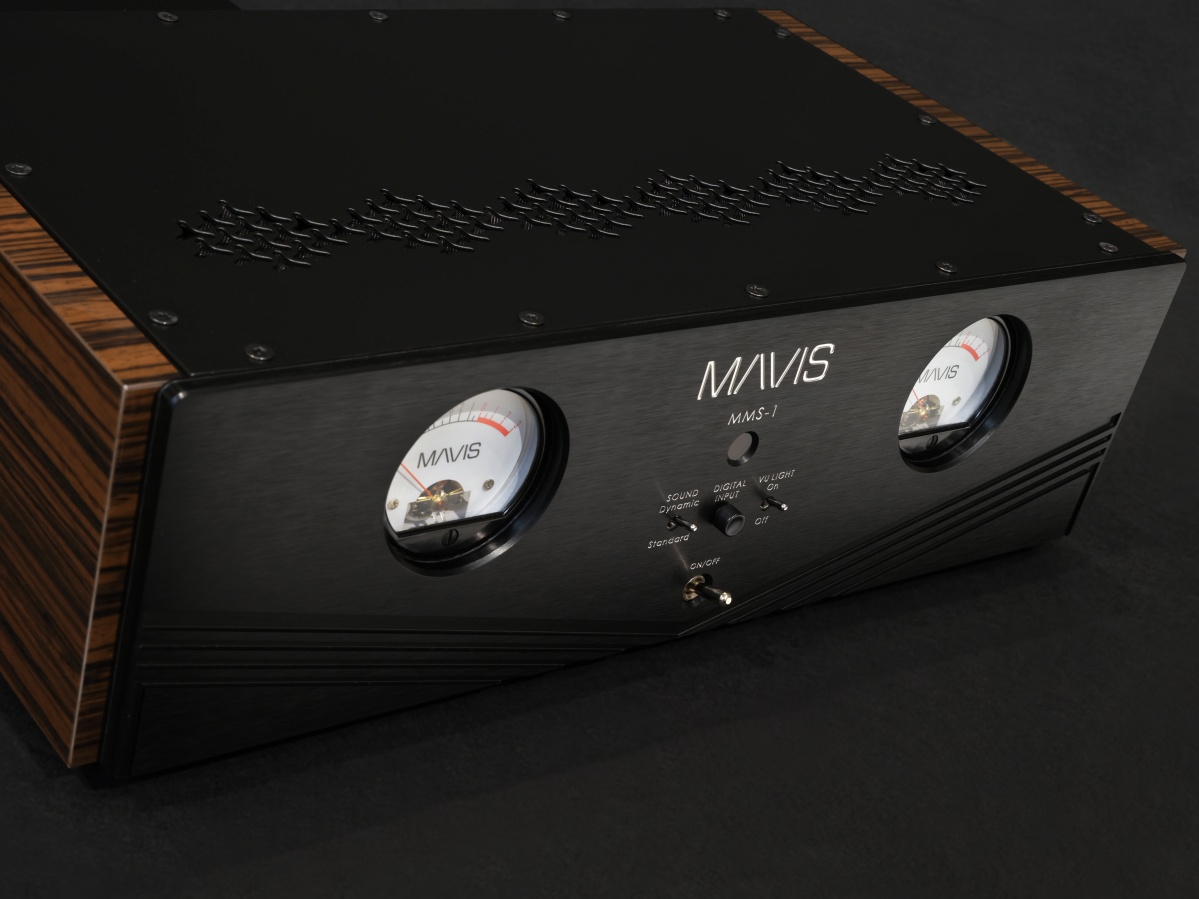

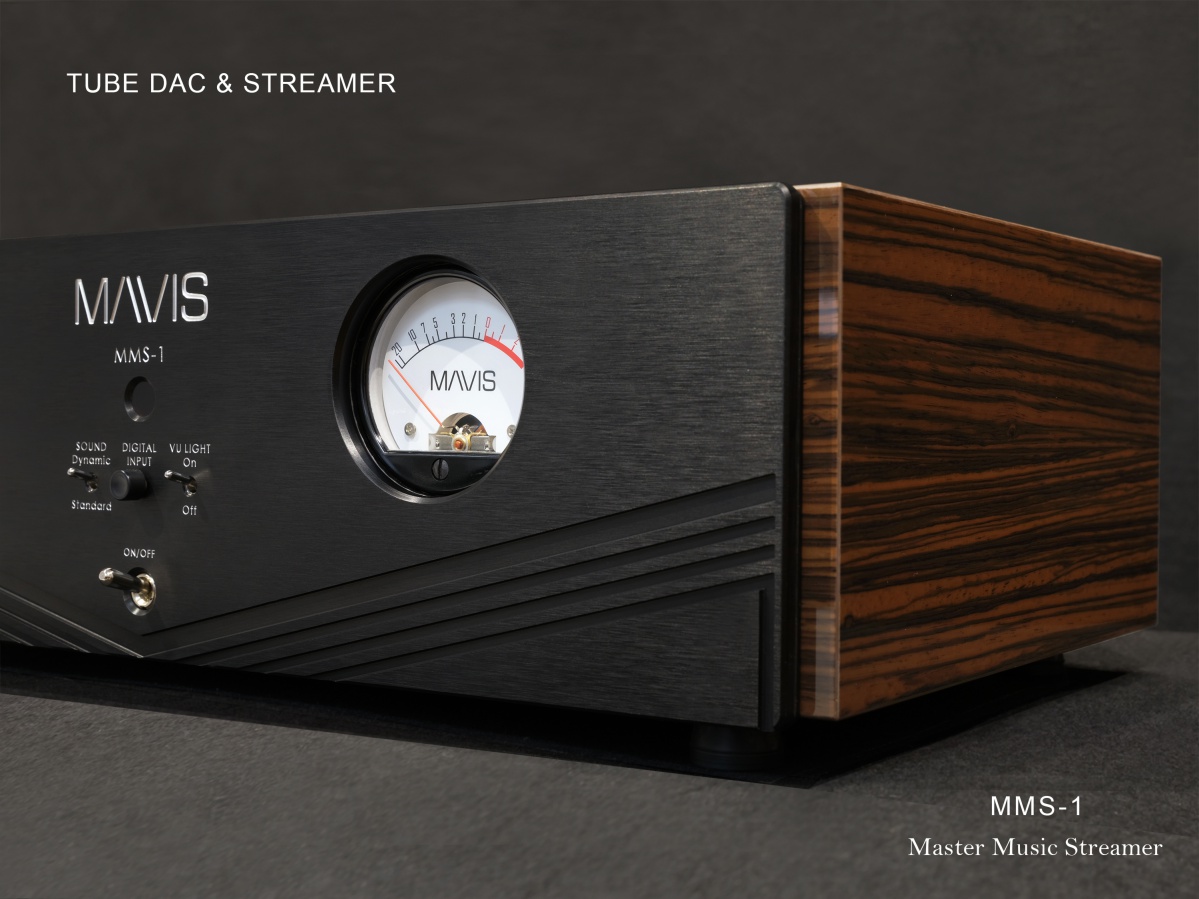

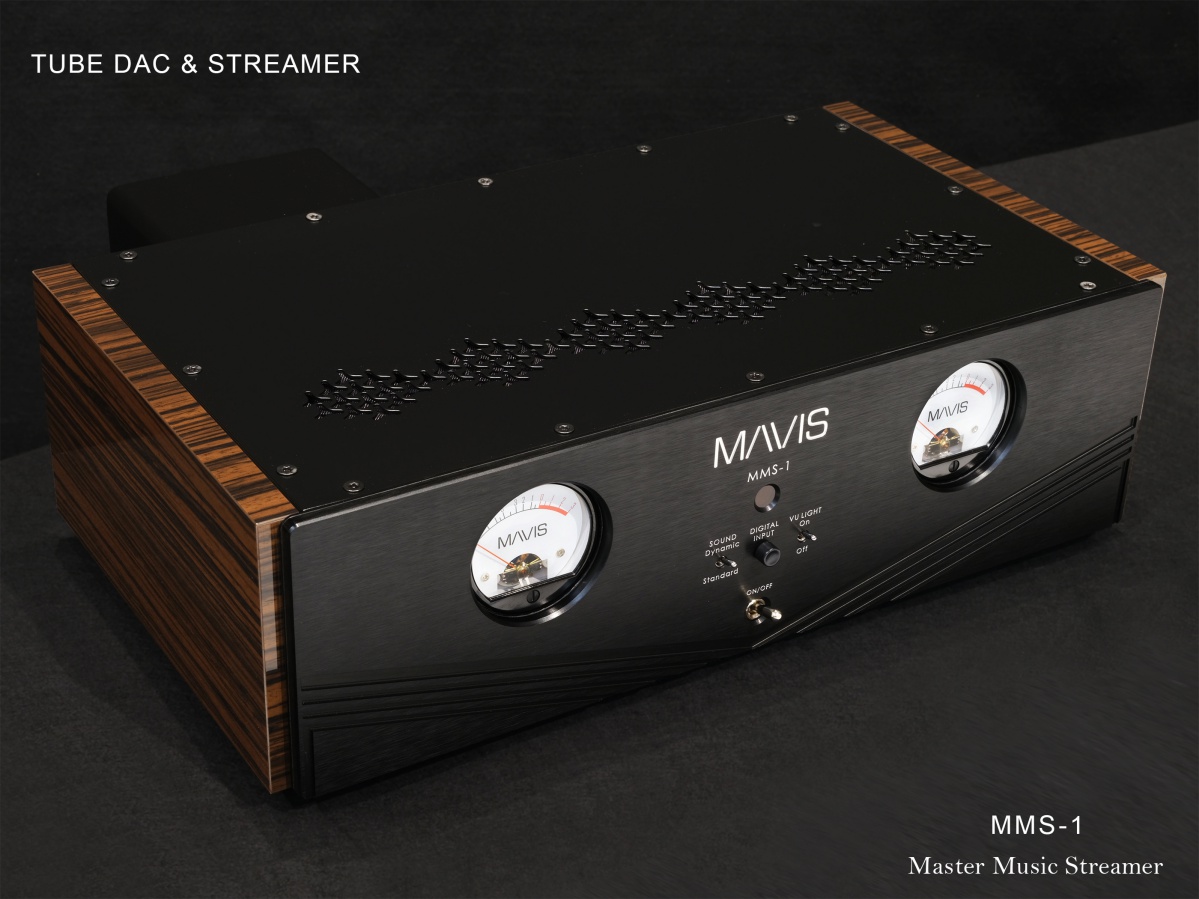

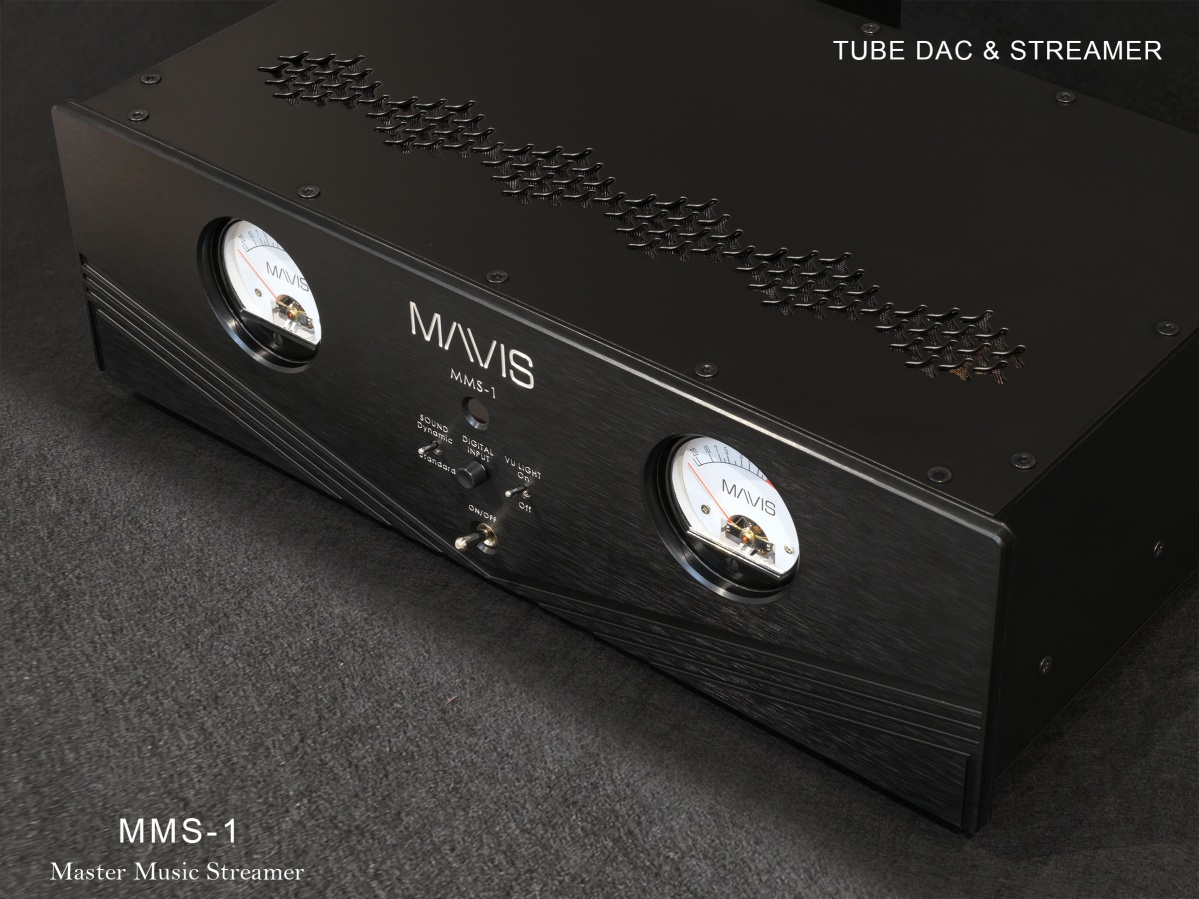

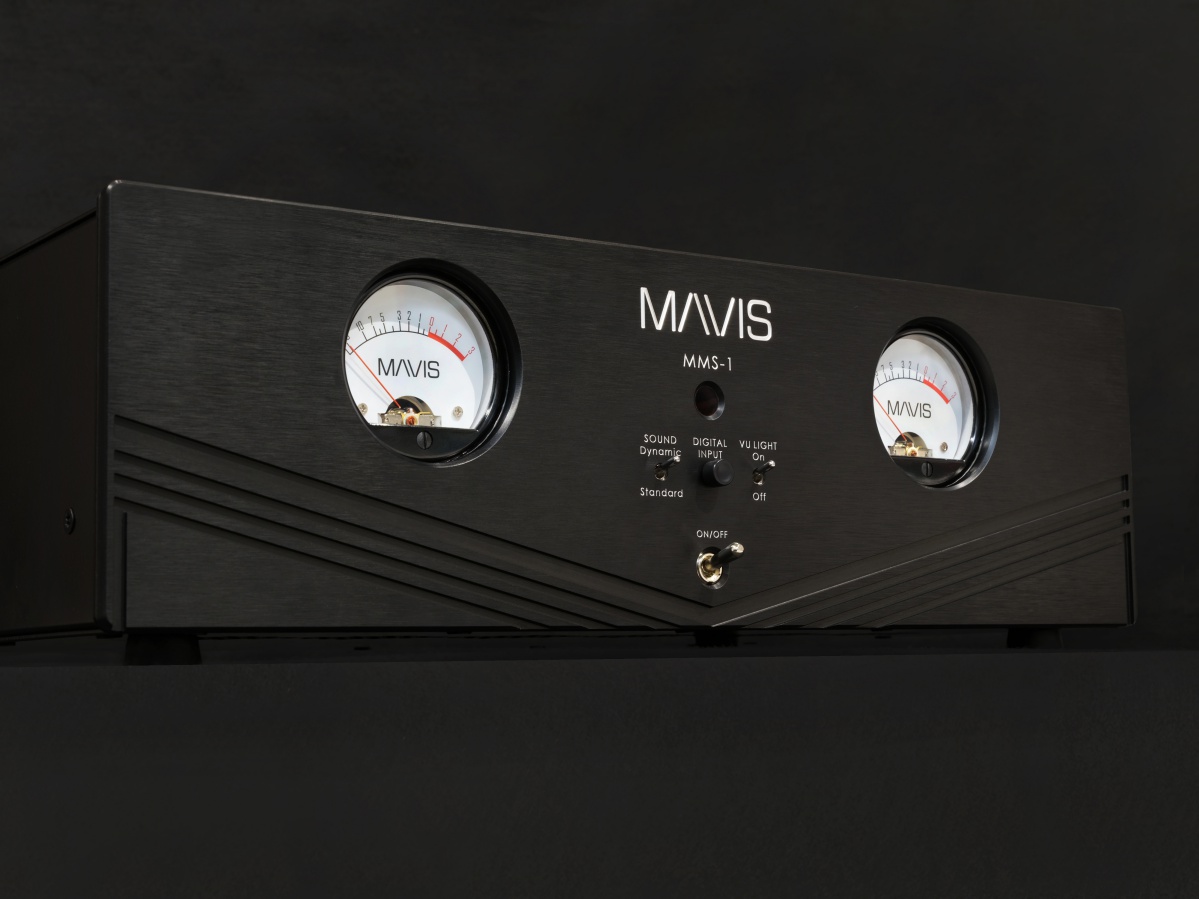

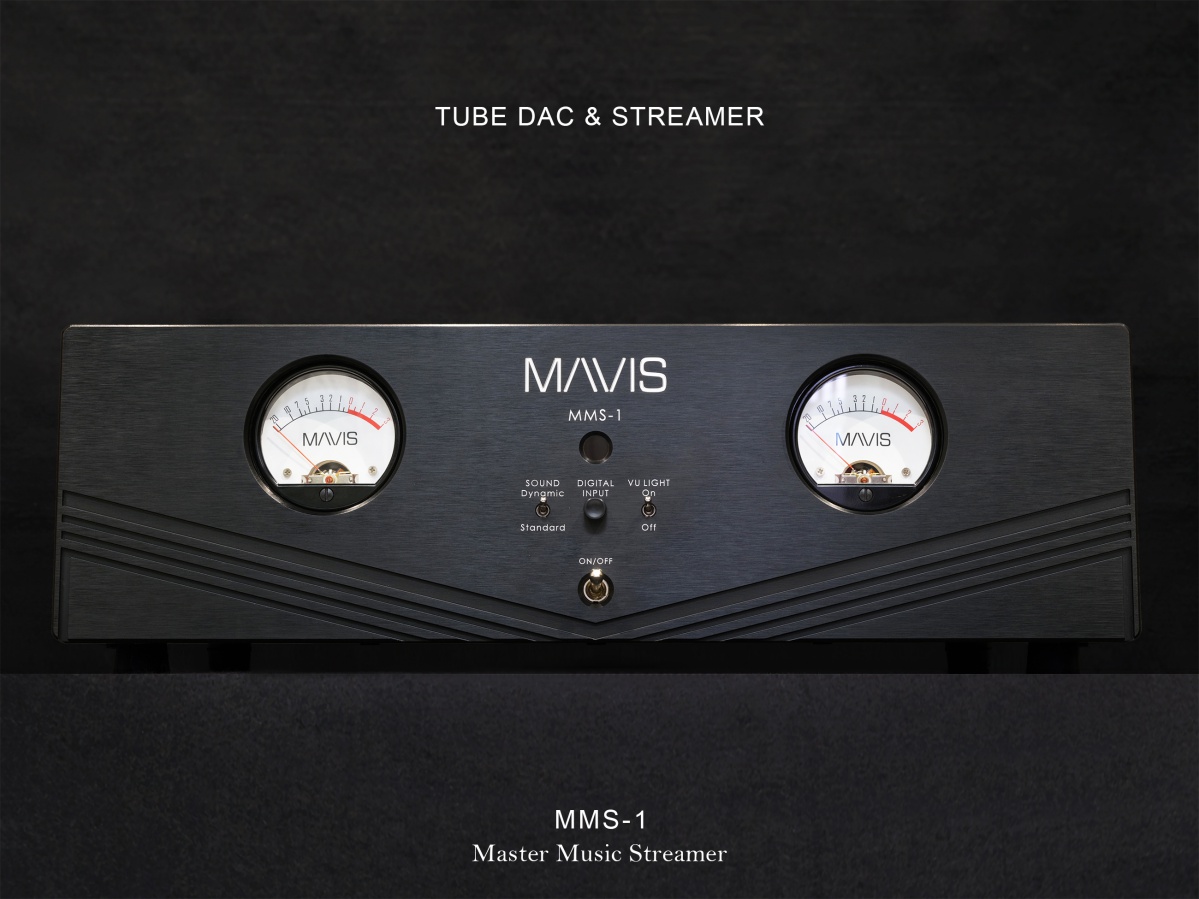

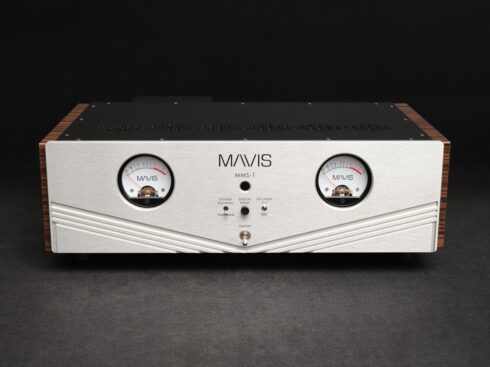

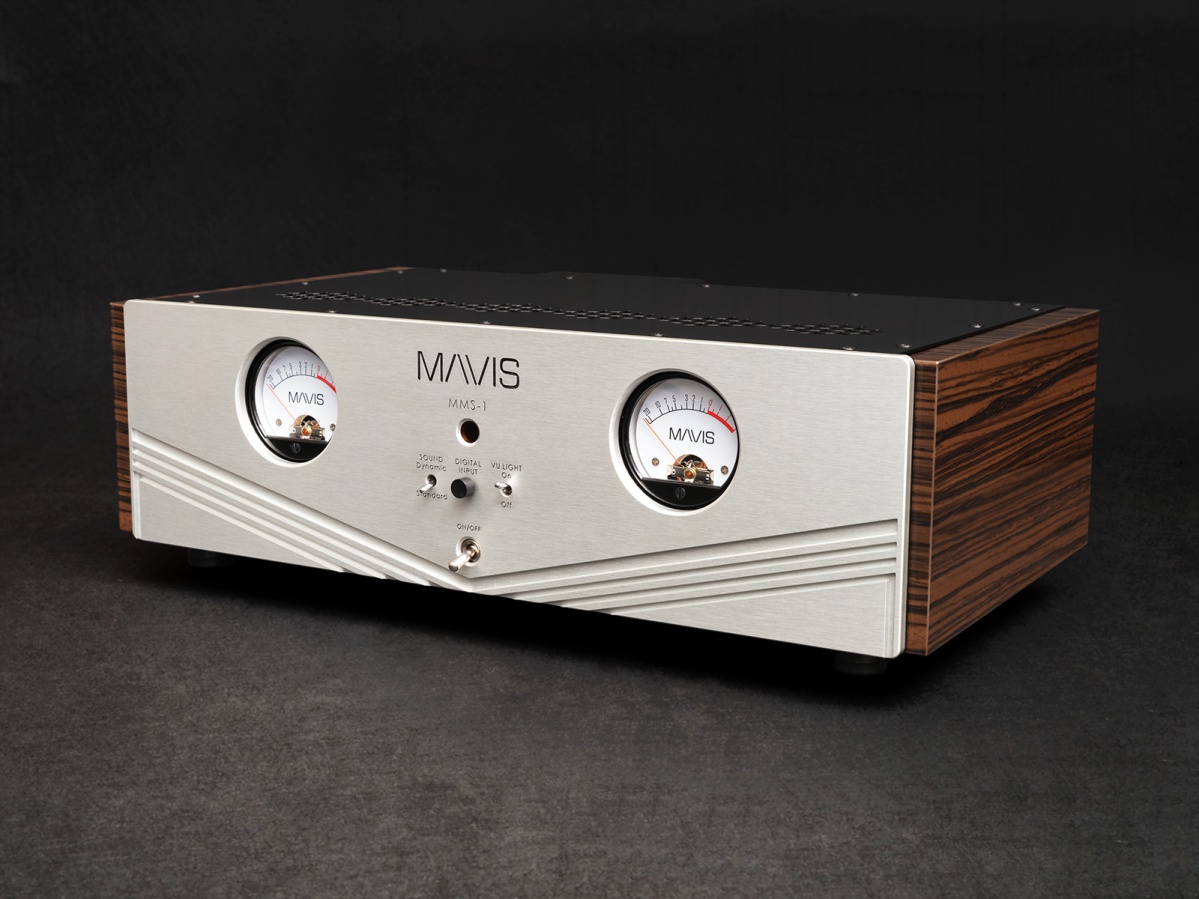

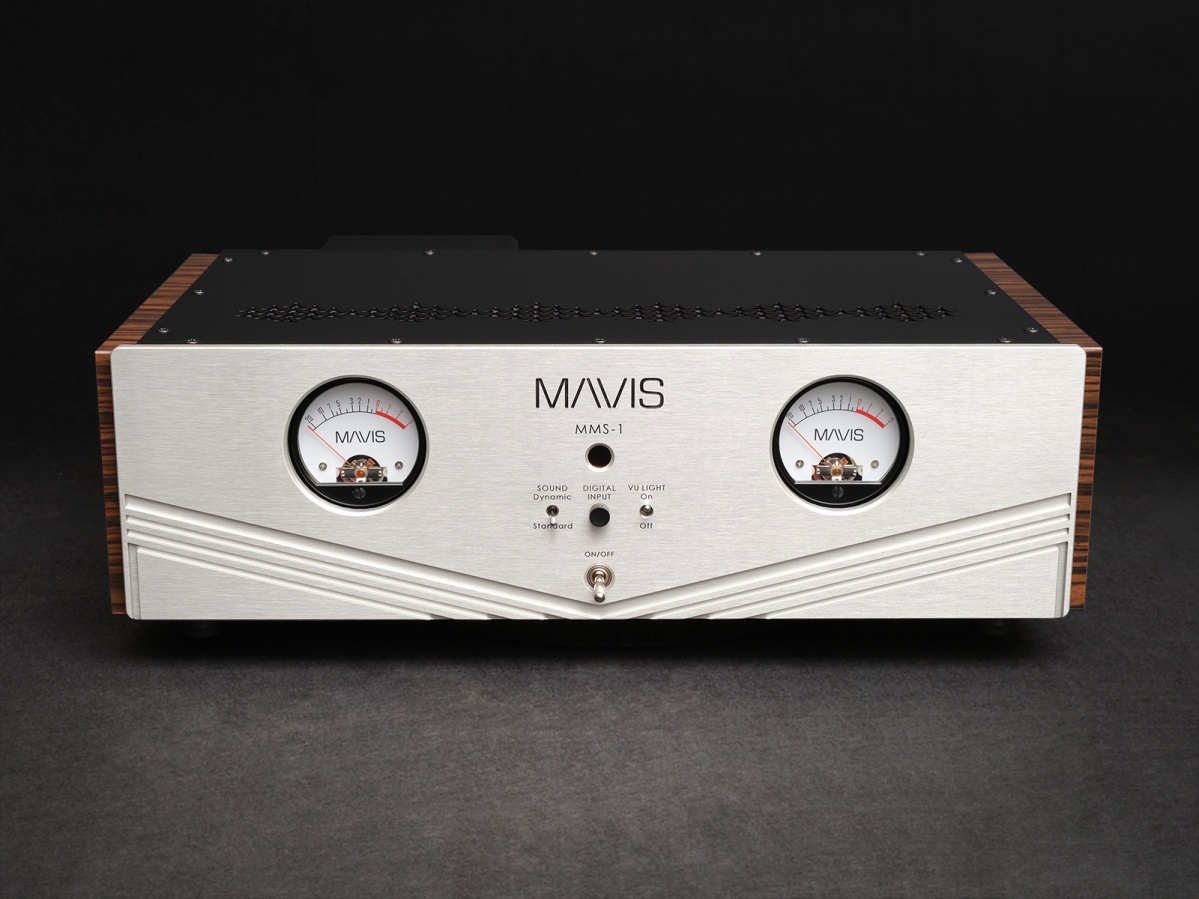

MMS-1 Tube DAC & Streamer
SPECIFICATIONS
INTRODUCTION
MAVIS MMS1 is an outstanding Tube DAC and Streamer used to decode Audio signals and stream high-quality music online. The following are some highlights of features.
– Single Ended EL-84 Tubes Output with Transformers
– True Balance XLR output
– LINEAR POWER SUPPLY for all Analog & Digital
– DAC input : Optical / Coaxial / BNC – VU Meter

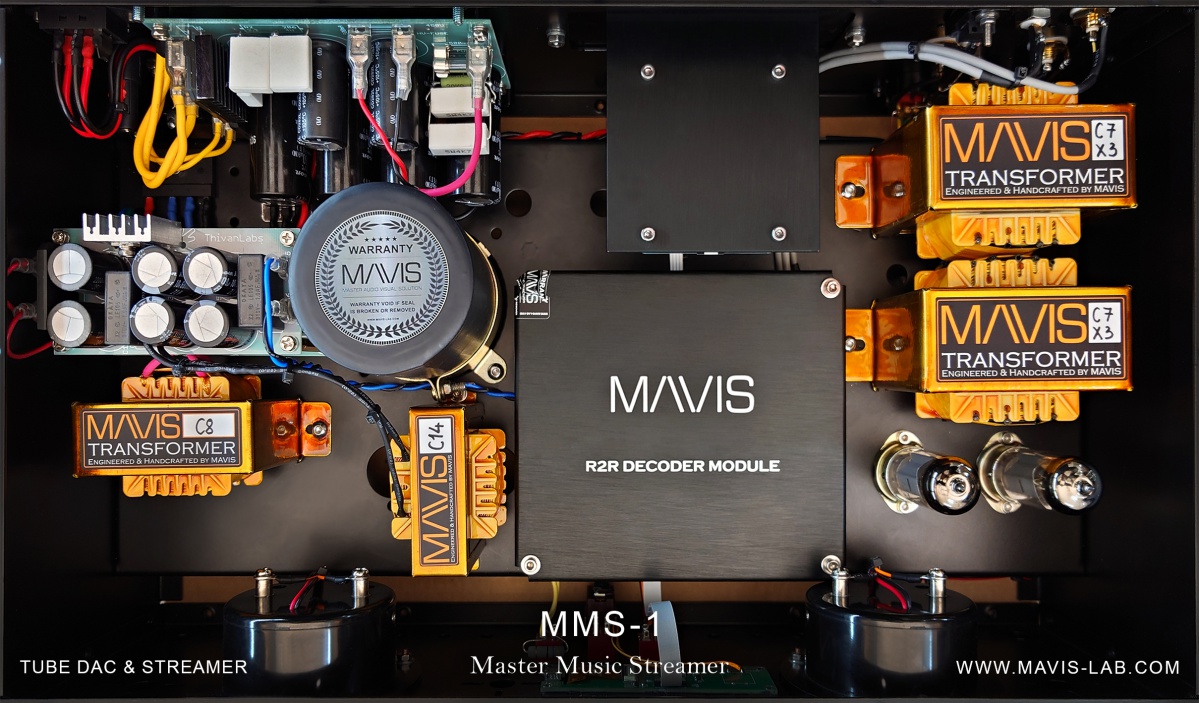

– 24bit R-2R Module Audio Decoder
– Streaming music from Tidal, Spotify, Qobuz etc.
– playing music directly from USB, HDD, SSD
– 2 Sound mode : Dynamic & Standard

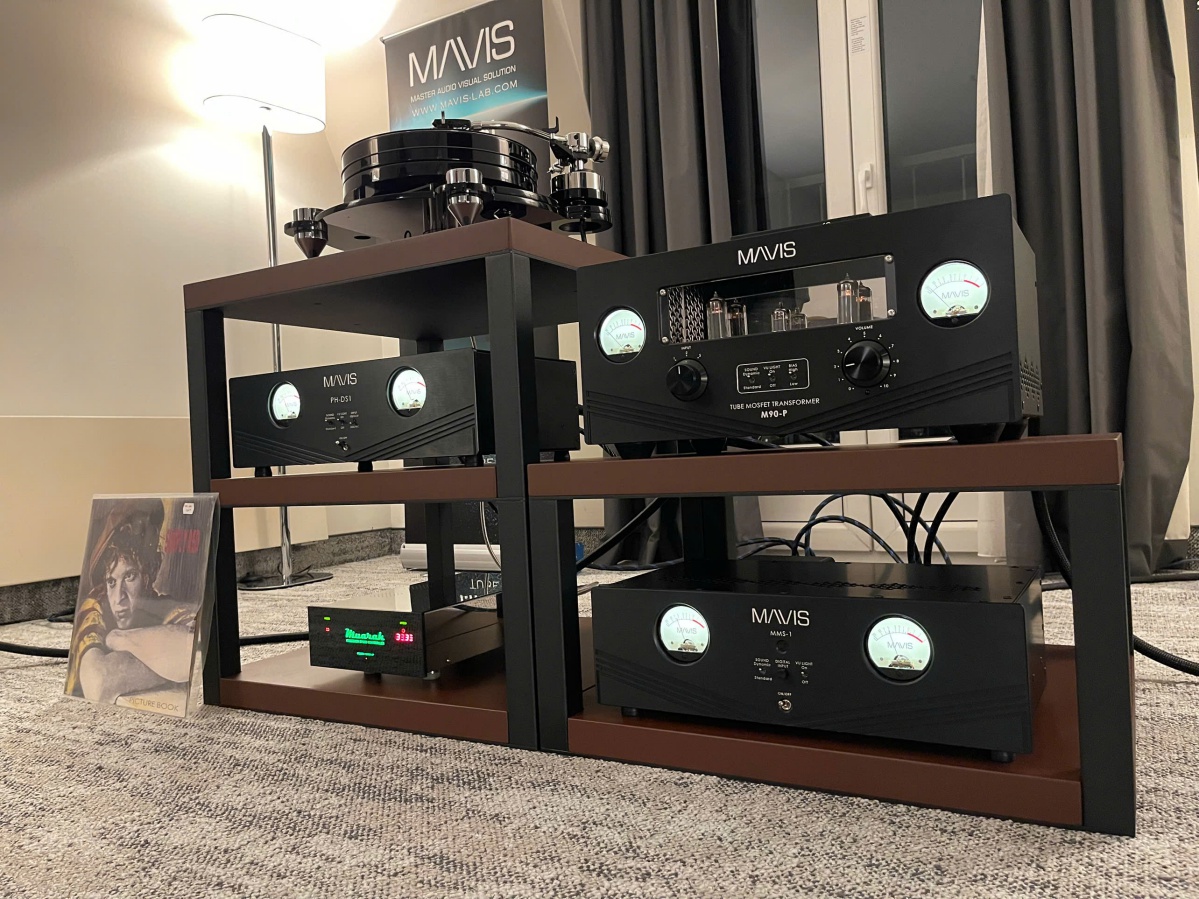

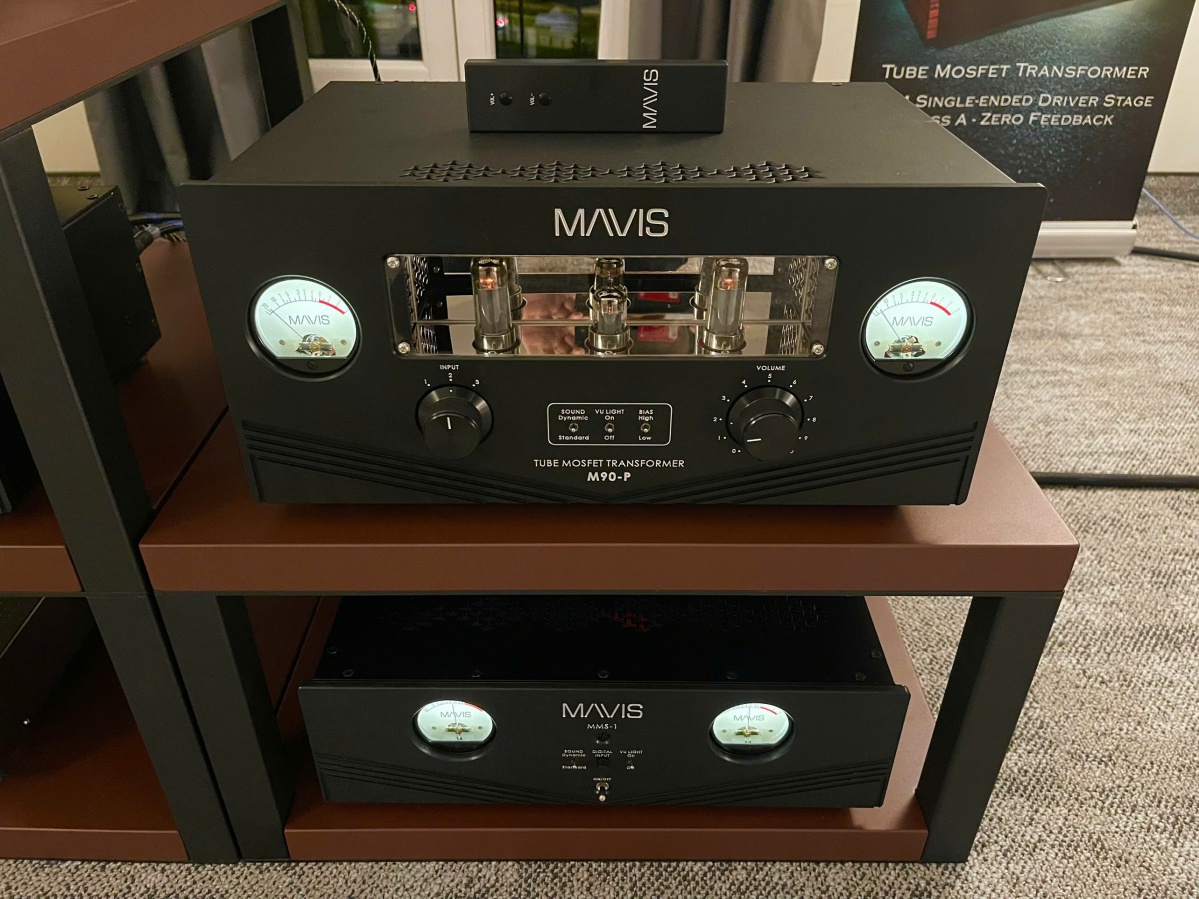

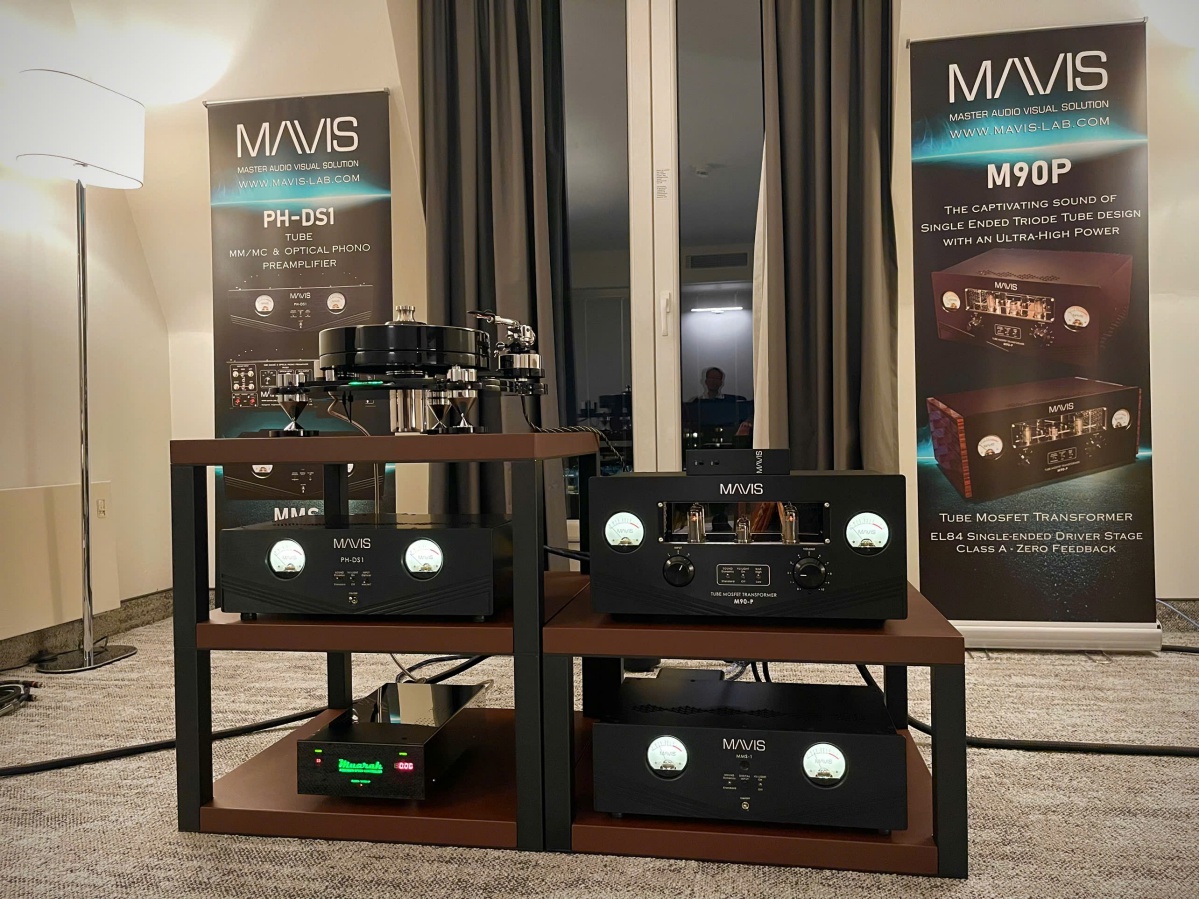

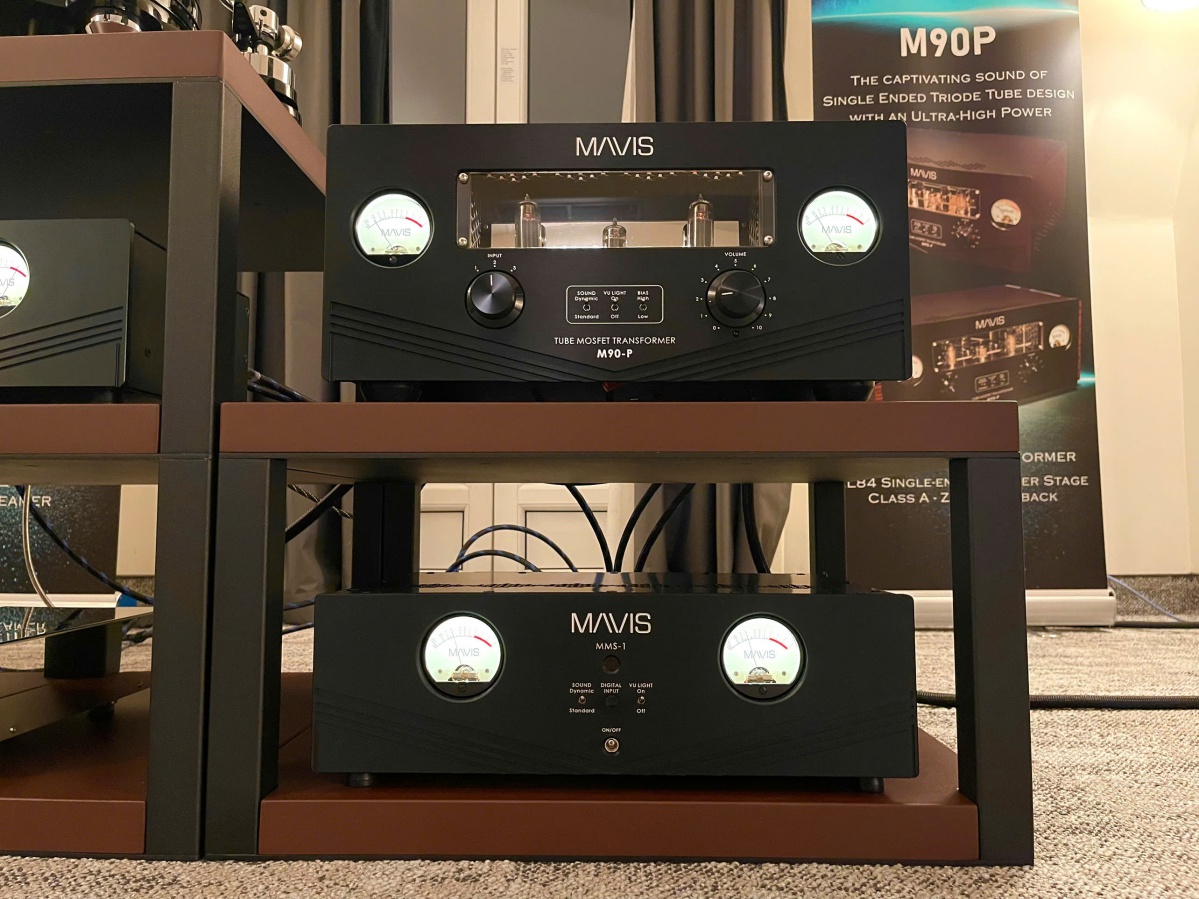

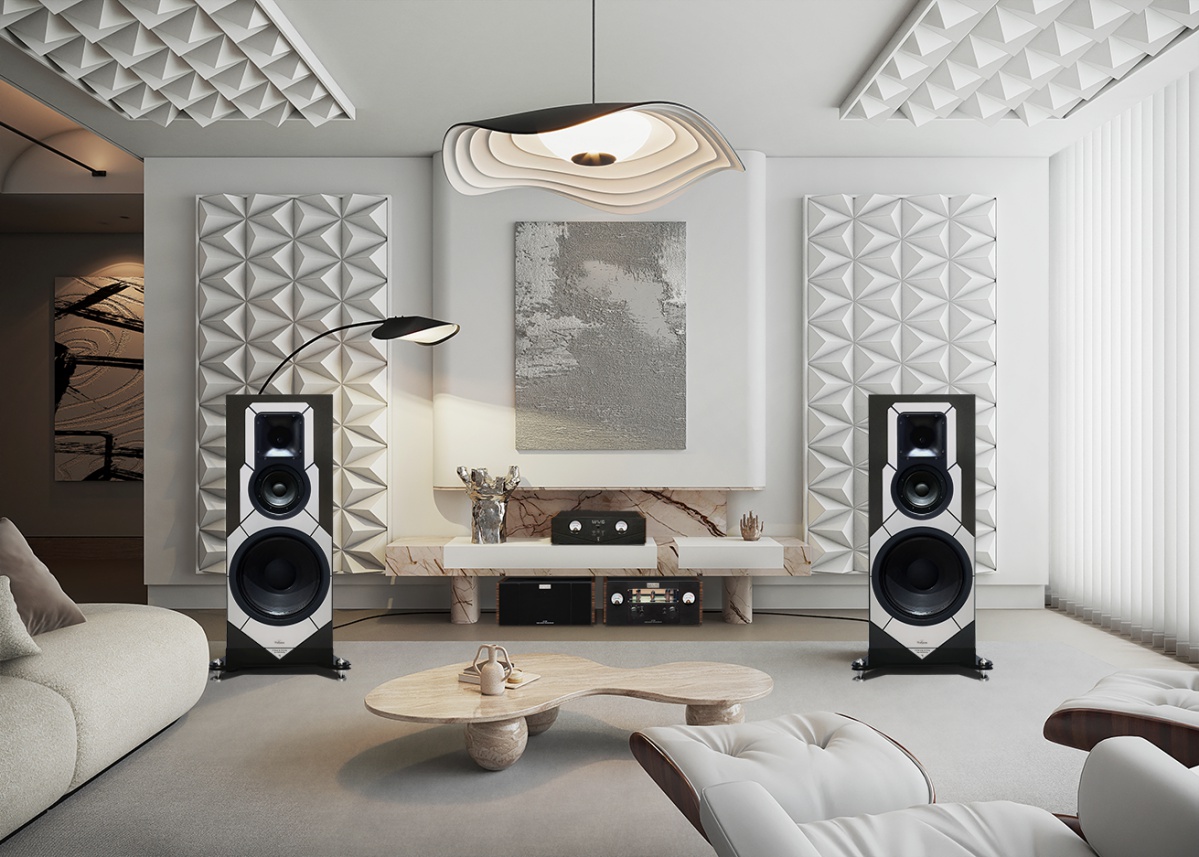

AUDIO SYSTEM SUGGESTION
IMAGES
