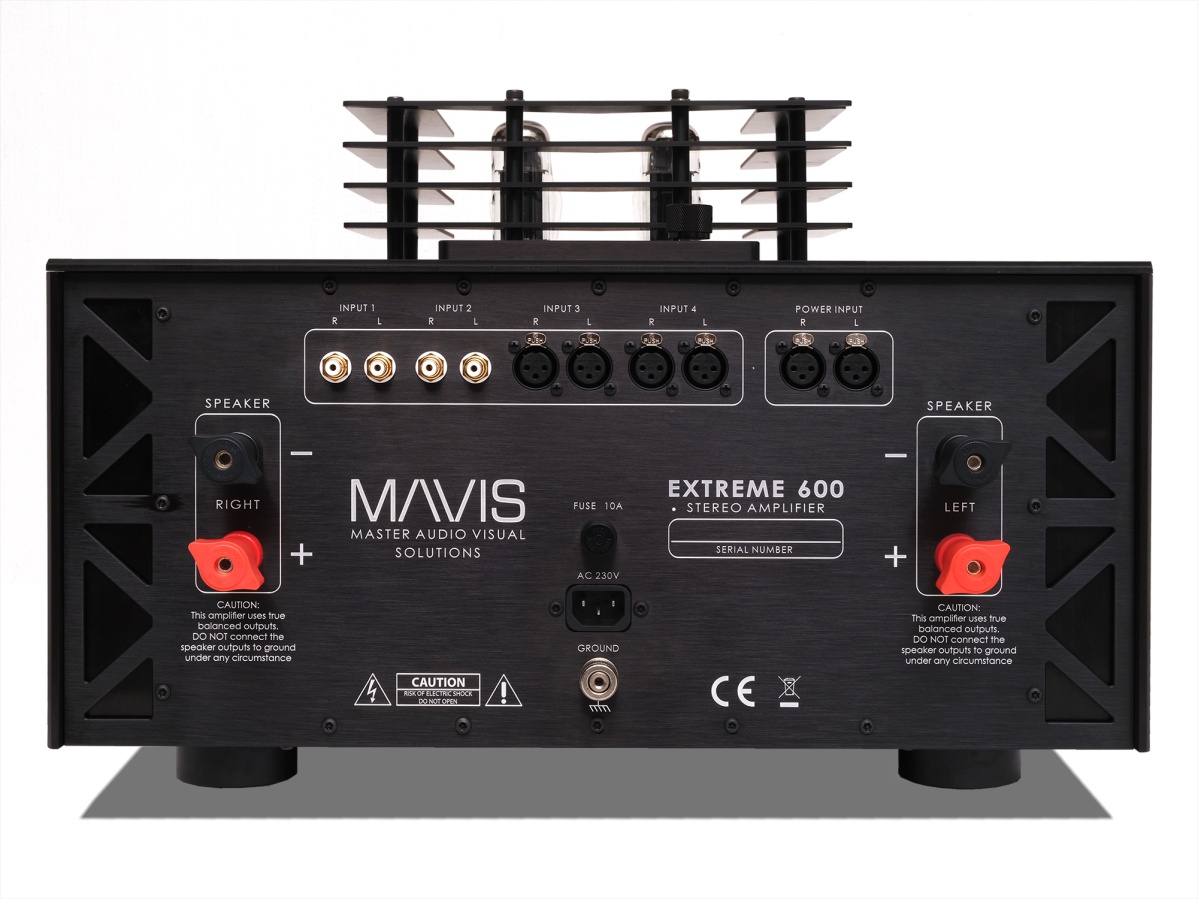

| Inputs | Power amp : 1 Pair of XLR |
| Intergrated Amp : 4 | |
| 2 Pair of RCA ; 2 Pair of XLR | |
| Speakers | 4 – 16Ω |
| Vacuum tube complement | 2 x 6SN7 ; 2 x EL34 |
| Output Power (per channel) | 100W CLASS A / 300W @ 8Ω |
| 600W @ 4Ω | |
| Frequency response | 20Hz – 20kHz (0dB) ; 8Hz – 50kHz (-3dB) |
| Input Sensitivity | 1.0V |
| Input Impedance | 20kΩ |
| Gain | Power Amp +32dB |
| Power Requirements | 230V |
| Power Consumption | Low Bias : 150W |
| High Bias : 420W | |
| Dimensions without amp stand (W x D x H) | 53 x 46 x 35 (cm) |
| Weight | 82kg |
| Bias switch | 1 (High / Low) |
| Dynamic/Standard switch | 1 |
| Intergrated / Power Amp switch | 1 |
| VU meter | Yes |
| Block | 1 |

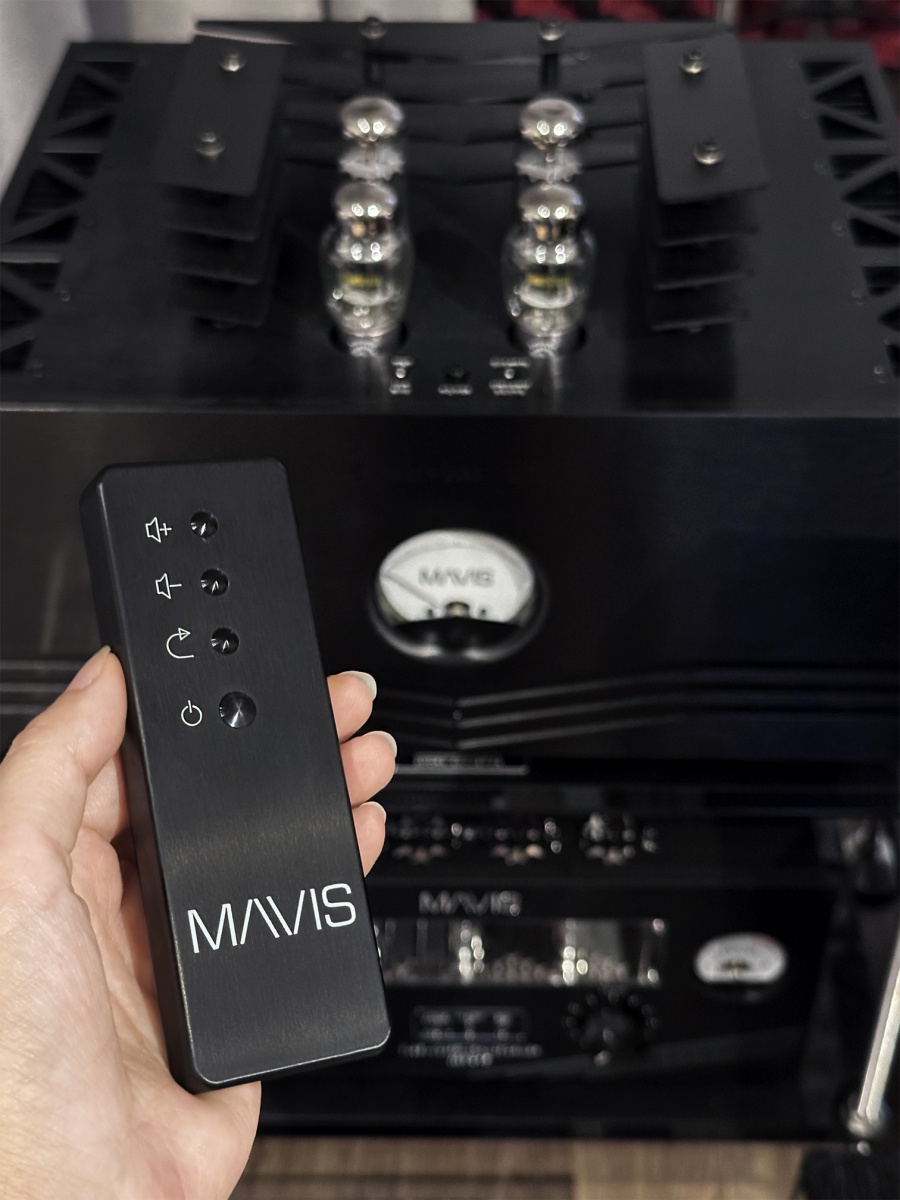

| Remote control | Yes |

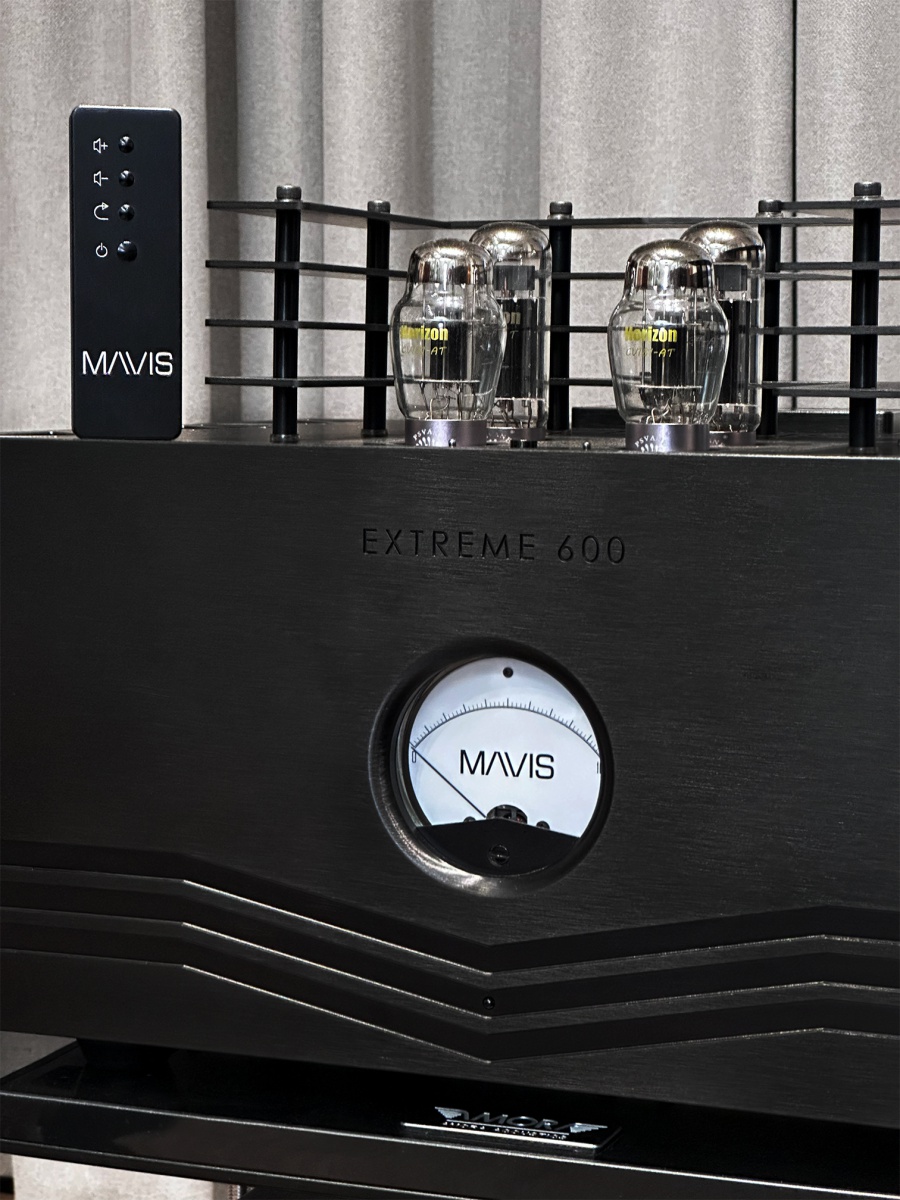

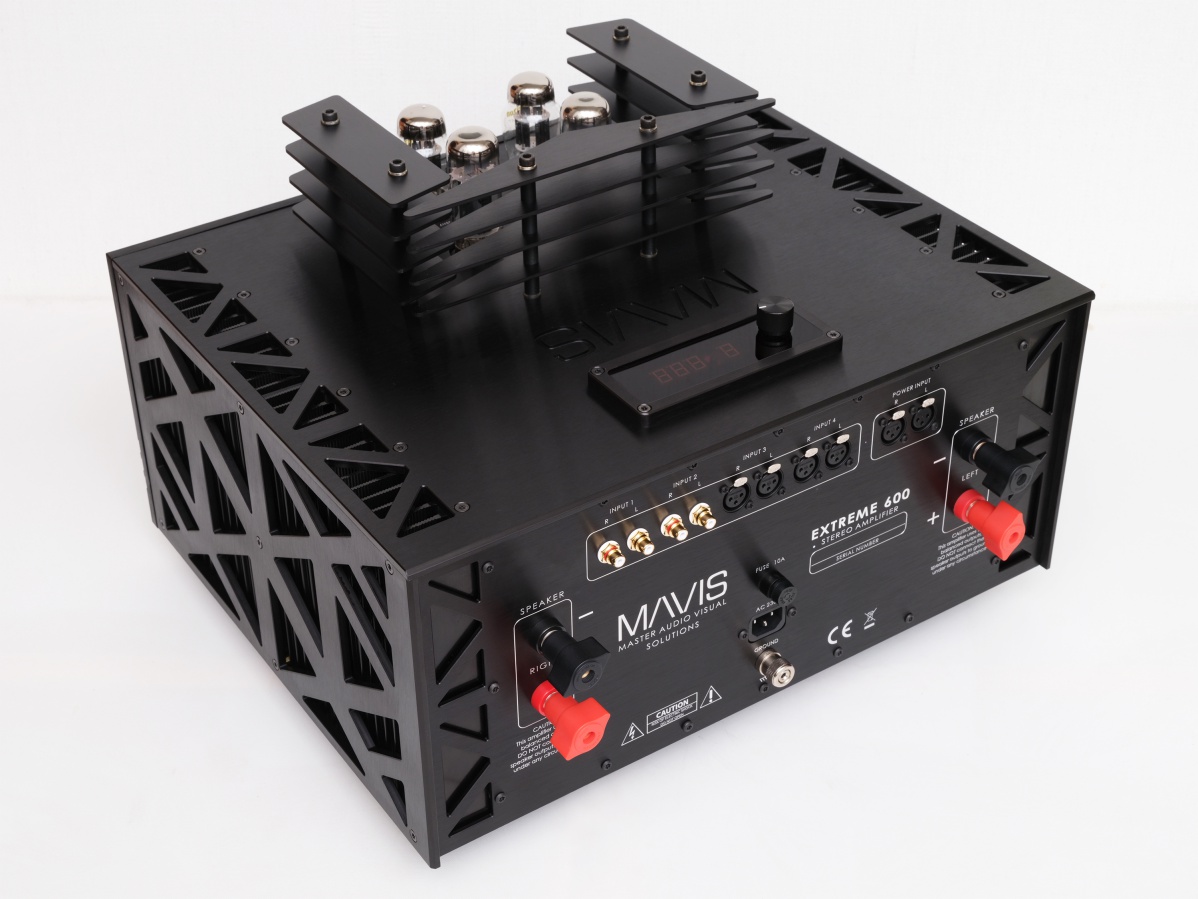

EXTREME 600
SPECIFICATIONS
INTRODUCTION
|
AN INTRODUCTION OF MAVIS TUBE HYBRID AMPLIFIER WITH TRANSFORMER OUTPUT MAVIS’s Tube Hybrid Amplifier with Transformer Output is a unique design featuring a driver stage that operates as a Single-Ended Class A Zero Feedback tube amplifier, whose power is further enhanced by a solid-state output stage using output transformers. MAVIS’s tube hybrid amplification preserves the emotional sound of the tube single-ended design, enhances dynamics and optimizes the sound response by the high power of solid state amplification. This design achieves both wonderful sound quality and an ability of well controlling all frequencies. Therefore, MAVIS’s hybrid tube amplification is extremely a good choice for reproducing all genres of music as correct and natural as possible as well as a great companion for all Hi Fi and High End loudspeakers. Also, with its flexibility and multi-functionality, MAVIS’s hybrid tube amplification brings an outstanding convenience in connecting and combining with many types of player including both analog devices and streamers. This brings to the user a diversity of playing with many types of high resolution music sources. |
The Extreme 600 is designed to operate both as an Integrated Hybrid Tube Amplifier and as a Tube Hybrid Power Amplifier.
Unlike conventional hybrid designs that simply combine a tube preamplifier with a solid-state power amplifier, the Extreme 600 represents a fundamentally different engineering philosophy, proprietarily researched and developed by Mavis for all Mavis amplifiers.
At the heart of the Extreme 600 lies Mavis’ unique Tube Hybrid amplification solution. The design of the Extreme 600 features a driver stage that operates as a Single-Ended Class A Zero Feedback tube amplifier, whose power is further enhanced by a solid-state output stage using output transformers. This unique engineering design approach fully exploits the sonic character of vacuum tubes, allowing the Extreme 600 to fully capture the organic warmth and musicality of vacuum tube amplification while extremely achieving the exceptional dynamics, authority, and control made possible by a highly capable power stage.
The sonic presentation of the E600 is remarkably open, spacious, and effortlessly expressive. Music flows with an impressive sense of air and scale, while still retaining the finest micro-details and subtle tonal nuances. This level of refinement is made possible by output transformers that have been carefully engineered and optimized specifically for the solid-state amplification stage. Live recordings in particular are reproduced with striking realism, creating a vivid and immersive soundstage that brings the listener closer to the LIVE performance.
The Extreme 600 excels across a wide range of musical genres—from the grandeur of classical and symphonic masterpieces, to large-scale orchestral works with explosive dynamics, to high-energy rock that demands speed and impact, and finally to intimate vocal recordings that require delicacy, warmth, and emotional depth.
Whatever the musical style and genres, all are reproduced beautifully by the Extreme 600, delivering the most captivating and emotional listening experience for all genres of music.
