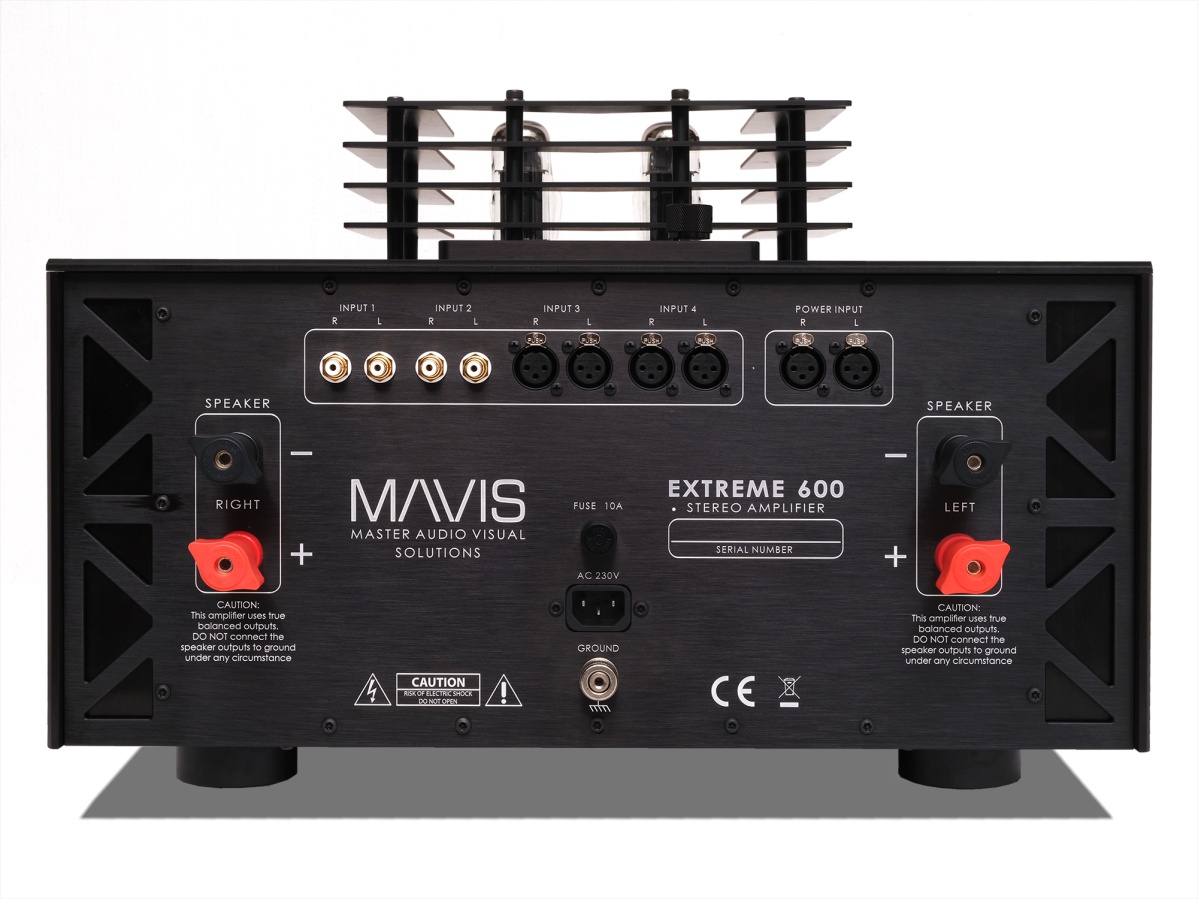

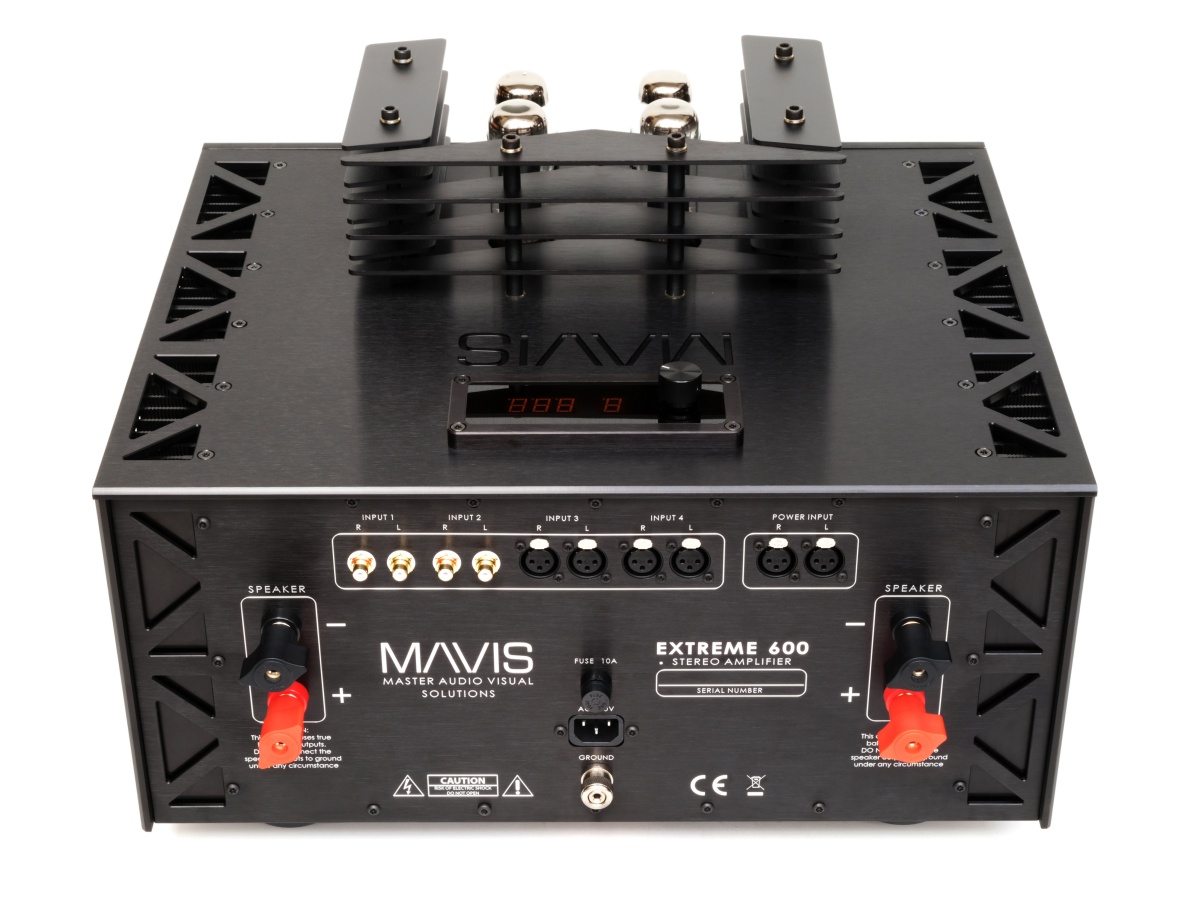

| Inputs |
Power amp : 1 Pair of XLR |
| Intergrated Amp : 4 |
| 2 Pair of RCA ; 2 Pair of XLR |
| Speakers |
4 – 16Ω |

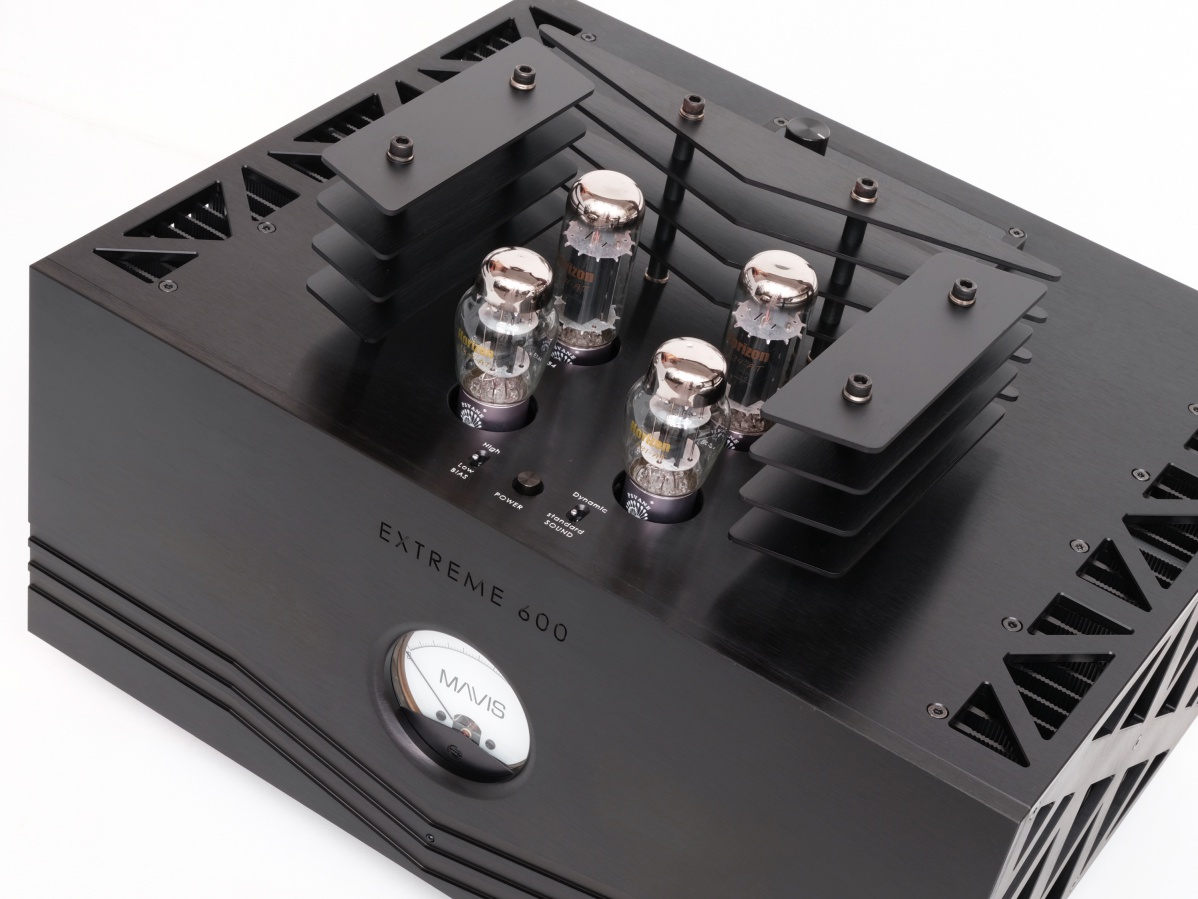

| Vacuum tube complement |
2 x 6SN7 ; 2 x EL34 |
| Output Power (per channel) |
100W CLASS A / 300W @ 8Ω |
|
600W @ 4Ω |
| Frequency response |
20Hz – 20kHz (0dB) ; 8Hz – 50kHz (-3dB) |
| Input Sensitivity |
1.0V |
| Input Impedance |
20kΩ |
| Gain |
Power Amp +32dB |
| Power Requirements |
230V |
| Power Consumption |
Low Bias : 150W |
| High Bias : 420W |
| Dimensions without amp stand (W x D x H) |
53 x 46 x 35 (cm) |
| Weight |
82kg |

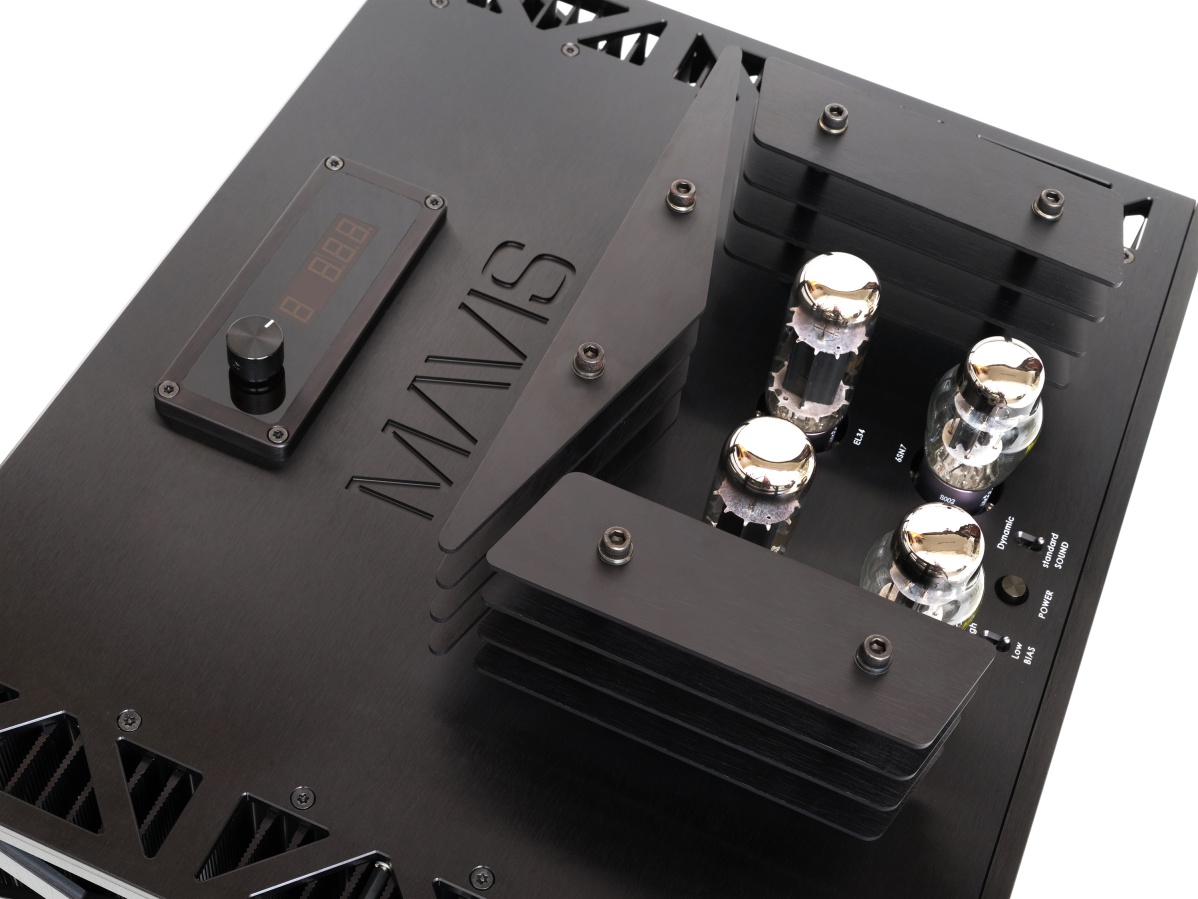

| Bias switch |
1 (High / Low) |
| Dynamic/Standard switch |
1 |
| Intergrated / Power Amp switch |
1 |

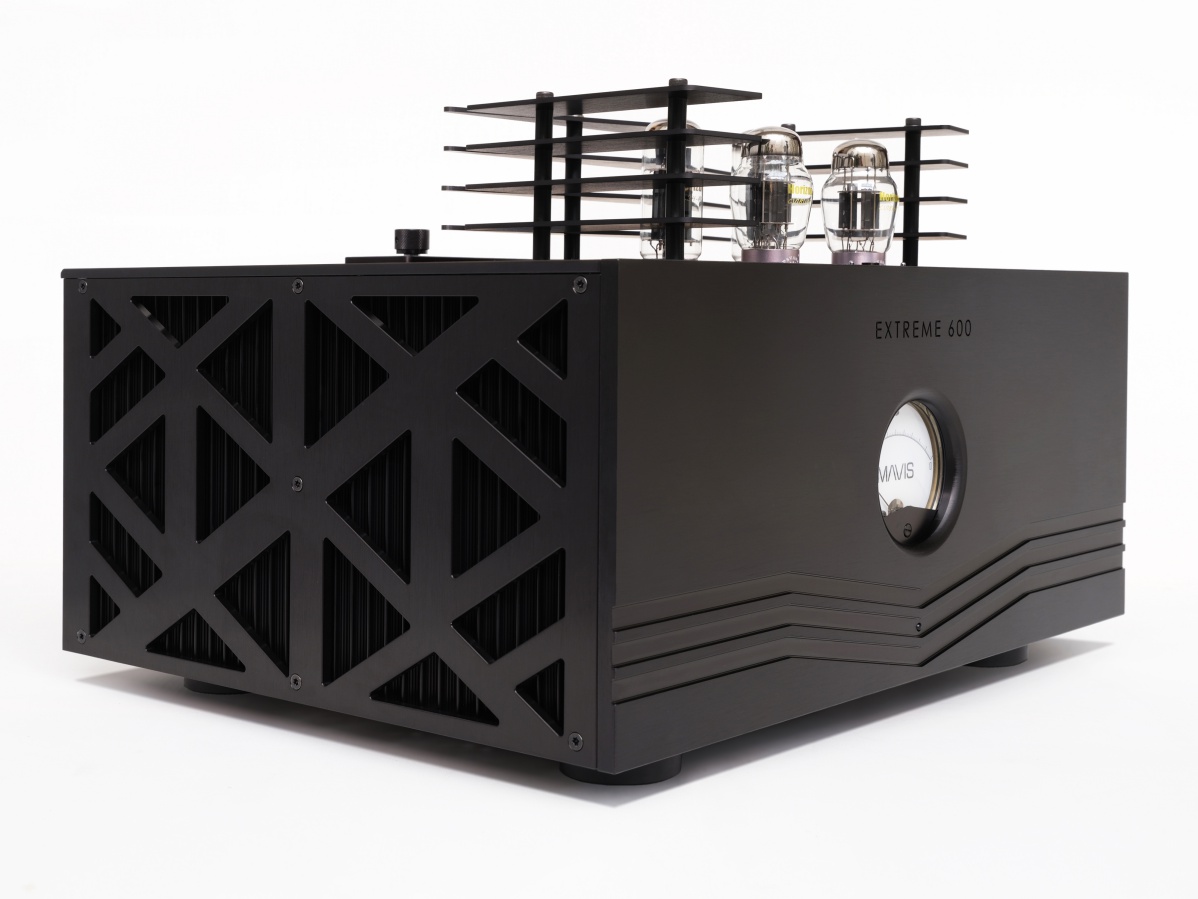

| VU meter |
Yes |
| Block |
1 |

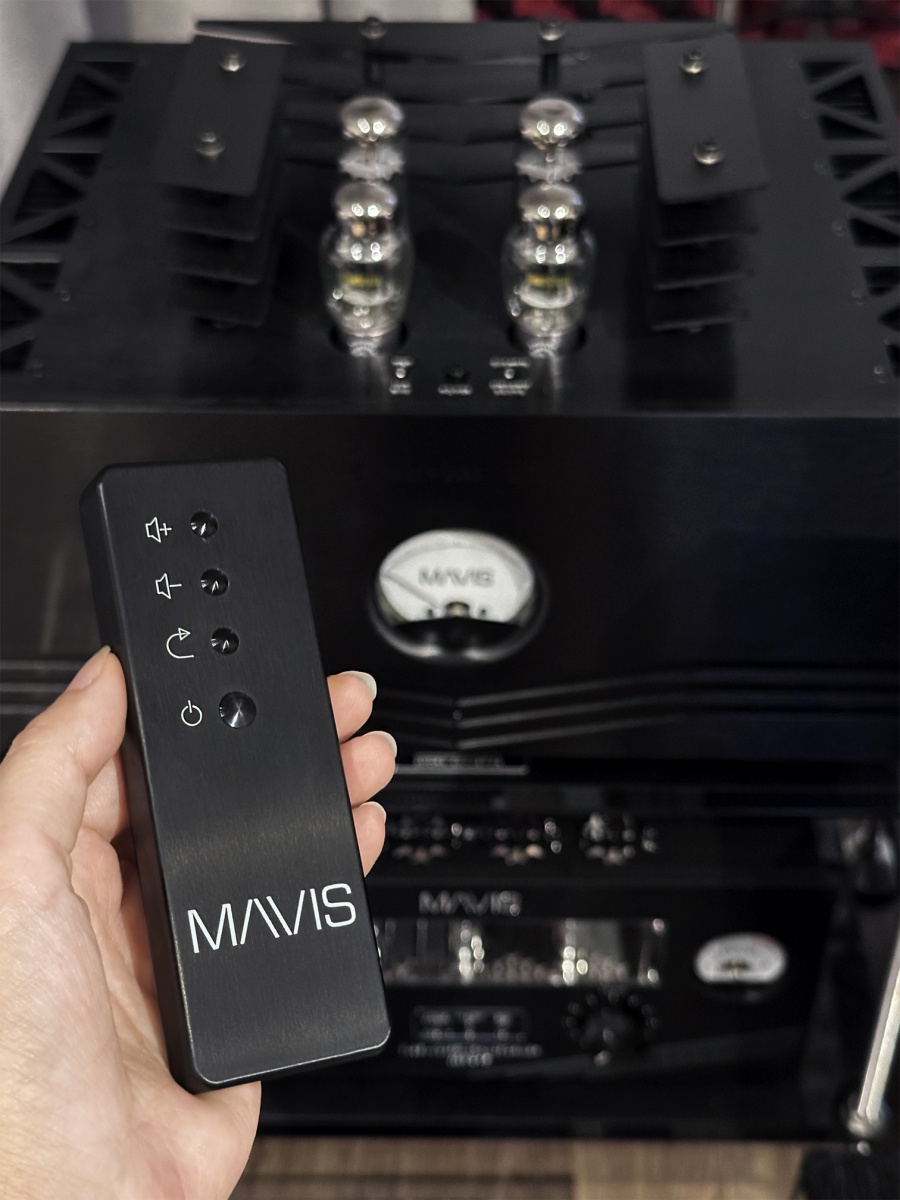

| Remote control |
Yes |
